Chapter 8: The Quantum–Mechanical Model of the Atom
Introduction
The quantum-mechanical model of the atom describes the behavior of electrons using the principles of quantum mechanics. This chapter explores the nature of light, electromagnetic radiation, quantum numbers, and the structure of atomic orbitals, providing a foundation for understanding atomic and molecular structure.
The Nature of Light and Electromagnetic Radiation
Electromagnetic Radiation and Its Properties
Electromagnetic radiation is a form of energy transmission that includes radio waves, microwaves, visible light, and x-rays. All electromagnetic waves travel at the same speed in a vacuum, known as the speed of light (c), which is m/s.
Wavelength (\(\lambda\)): The distance between two consecutive crests or troughs of a wave, measured in meters (m).
Frequency (\(\nu\)): The number of wave cycles that pass a point per second, measured in hertz (Hz) or s−1.
Amplitude: The height of the wave, related to the intensity or brightness of the light.
Wave Characteristics
Waves are characterized by their amplitude and wavelength. The amplitude determines the intensity of the light, while the wavelength determines its color in the visible spectrum.
Relationship Between Wavelength and Frequency
Wavelength and frequency are inversely proportional, as described by the equation:
Where c is the speed of light, \(\lambda\) is the wavelength, and \(\nu\) is the frequency.
If the wavelength increases, the frequency decreases, and vice versa.
The Electromagnetic Spectrum
The electromagnetic spectrum encompasses all types of electromagnetic radiation, arranged by wavelength and frequency. Visible light is only a small portion of the spectrum, with wavelengths from approximately 400 nm (violet) to 700 nm (red).
Color and Visible Light
The color of visible light is determined by its wavelength. White light is a mixture of all visible wavelengths. When white light passes through a prism, it separates into its component colors, producing a spectrum.
Calculations Involving Light
Calculating Wavelength and Frequency
To find the wavelength given the frequency:
To find the frequency given the wavelength:
Example: Calculate the wavelength of red light with a frequency of s−1:
Energy of a Photon
The energy of a photon is directly proportional to its frequency and inversely proportional to its wavelength:
h is Planck’s constant: J·s
Example: Calculate the energy of a photon of γ radiation with m:
Wave Behavior: Interference and Diffraction

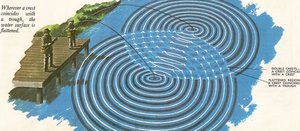

Interference
When two or more waves overlap, they interact through interference:
Constructive interference: Waves add together to make a larger wave.
Destructive interference: Waves cancel each other out.
Diffraction
Diffraction occurs when waves bend around obstacles or pass through slits comparable in size to their wavelength, producing characteristic patterns.
The Particle Nature of Light: The Photoelectric Effect
Photoelectric Effect and Photons
Experiments showed that light can behave as particles called photons. The photoelectric effect demonstrates that electrons are emitted from a material only when the light has a frequency above a certain threshold, supporting the idea of quantized energy packets.
Planck’s constant (h): J·s
Energy of a photon:
Atomic Spectroscopy and the Bohr Model
Emission Spectra
When atoms absorb energy, they emit light at specific wavelengths, producing an emission spectrum unique to each element. This property is used to identify elements.
The Bohr Model of the Atom
The Bohr model describes electrons as orbiting the nucleus in quantized energy levels. When an electron transitions between levels, it absorbs or emits a photon with energy equal to the difference between the levels.
Wave Behavior of Electrons
de Broglie Hypothesis
Louis de Broglie proposed that particles such as electrons have wave-like properties, with a wavelength inversely proportional to their momentum. This wave-particle duality is significant for small particles like electrons.
Quantum Numbers and Atomic Orbitals
Principal Quantum Number (n)
The principal quantum number (n) determines the energy and size of an orbital. It can be any integer ≥ 1. As n increases, the orbital becomes larger and higher in energy, but the energy difference between levels decreases.
Angular Momentum Quantum Number (l)
The angular momentum quantum number (l) determines the shape of the orbital and can have integer values from 0 to (n – 1):
l = 0: s orbital (spherical)
l = 1: p orbital (two-lobed)
l = 2: d orbital (four-lobed)
Magnetic Quantum Number (ml)
The magnetic quantum number (ml) specifies the orientation of the orbital and can have integer values from –l to +l, including zero.
Relationships Among Quantum Numbers
Each set of quantum numbers (n, l, ml) describes a unique orbital. Orbitals with the same n are in the same principal energy level; those with the same n and l are in the same sublevel (subshell).

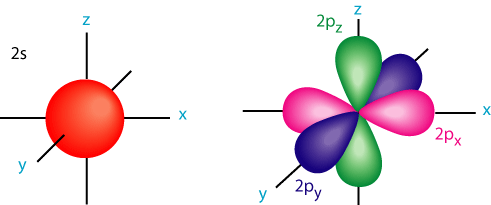

The Shapes of Atomic Orbitals
s Orbitals (l = 0)
Each principal energy level has one s orbital, which is spherical in shape and has the lowest energy in its energy state. The number of nodes is (n – 1).
p Orbitals (l = 1)
Each principal energy level above n = 1 has three p orbitals (ml = –1, 0, +1), oriented along the x, y, and z axes. They are two-lobed and have one node at the nucleus.
Summary Table: Quantum Numbers and Orbitals
Quantum Number | Symbol | Allowed Values | Physical Meaning |
|---|---|---|---|
Principal | n | 1, 2, 3, ... | Energy level, size of orbital |
Angular Momentum | l | 0 to n–1 | Shape of orbital (s, p, d, ...) |
Magnetic | ml | –l to +l | Orientation of orbital |
Additional info: This summary covers the foundational quantum-mechanical concepts necessary for understanding atomic structure, electron configuration, and the behavior of light and matter at the atomic scale.
