Transition Metals and Coordination Compounds: Structure, Properties, and Applications

Transition Metals and Coordination Compounds

Introduction to Transition Metals

Transition metals are elements found in the d-block of the periodic table, characterized by partially filled d orbitals. They exhibit unique properties such as variable oxidation states, formation of colored compounds, and the ability to form complex ions with ligands. These properties are foundational to understanding their chemical behavior and applications.

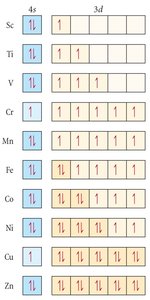

Electron Configuration of Transition Metals

The electron configuration of transition metals is crucial for predicting their chemical properties. For the first and second transition series, electrons are lost from the ns orbital before the (n-1)d orbital when forming ions. Notably, chromium (Cr) and copper (Cu) have irregular configurations due to enhanced stability from half-filled or fully filled d subshells.

• Key Point: Transition metals lose ns electrons before (n-1)d electrons when forming cations.

• Key Point: Cr and Cu exhibit irregular electron configurations due to Hund’s rule and exchange energy stabilization.

• Example: Write the electron configuration for Mn2+ and Fe3+.

Periodic Trends in Transition Metals

Atomic Radii

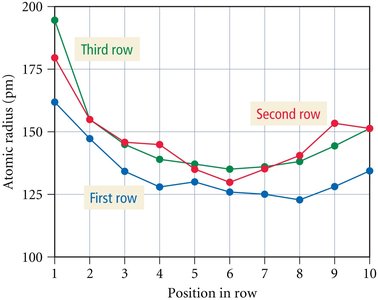

The atomic radii of transition metals are relatively similar across a period, with only a small increase down a group. The third-row transition metals are about the same size as the second row due to the lanthanide contraction.

Ionization Energies

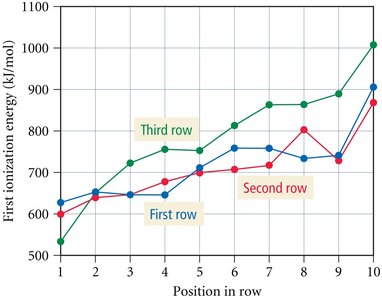

First ionization energies (IE1) generally increase across a row, but the increase is less pronounced than in main group elements. The third-row transition metals have higher IE1 values than the first and second rows.

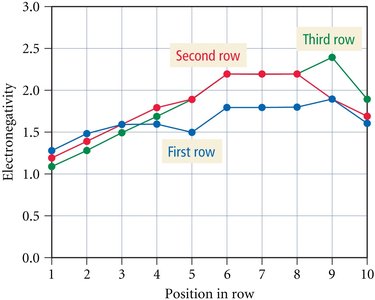

Electronegativity

Electronegativity increases across a row and from the first to the second row, with little difference between the second and third rows.

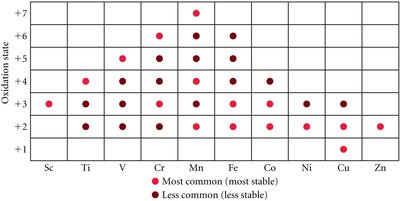

Oxidation States

Transition metals exhibit a wide range of oxidation states, often more than main group elements. This versatility is due to the similar energies of their ns and (n-1)d electrons.

Coordination Compounds

Structure of Coordination Compounds

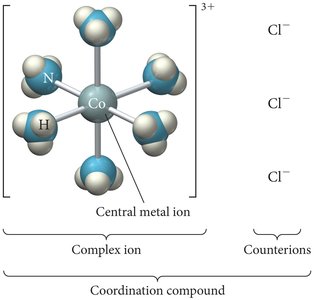

Coordination compounds consist of a central metal ion bonded to surrounding molecules or ions called ligands. The entire assembly is called a complex ion, and when combined with counterions, forms a neutral coordination compound.

• Ligand: A Lewis base that donates electron pairs to the metal ion (Lewis acid).

• Coordinate Covalent Bond: The bond formed between a ligand and a metal ion.

Common Ligands and Their Structures

Ligands can be neutral molecules or anions. Their ability to donate electron pairs determines their classification as monodentate, bidentate, or polydentate.

• Monodentate: Ligands that donate one electron pair (e.g., H2O, NH3, Cl-).

• Bidentate: Ligands that donate two electron pairs from different atoms (e.g., ethylenediamine).

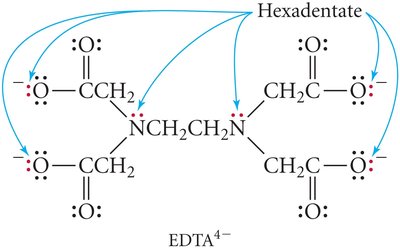

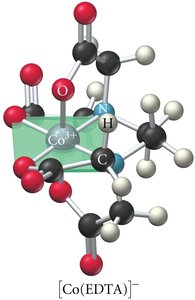

• Polydentate: Ligands that donate more than two electron pairs (e.g., EDTA).

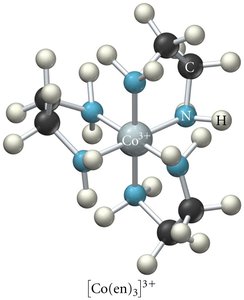

Chelates and Chelating Agents

A chelate is a complex ion containing a bidentate or polydentate ligand, which forms a ring structure with the metal ion. Chelating agents are important in analytical chemistry and medicine for binding metal ions selectively.

Coordination Number and Geometry

The coordination number is the number of ligand donor atoms bonded to the central metal ion. Common coordination numbers are 4 (tetrahedral or square planar) and 6 (octahedral).

Naming Coordination Compounds

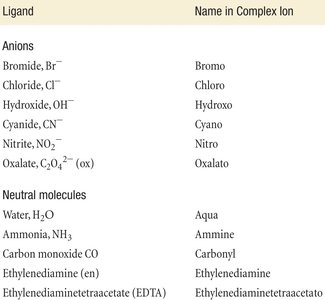

Rules for Naming

• Name the cation before the anion.

• Name ligands alphabetically, using prefixes (di-, tri-, etc.) to indicate quantity.

• Neutral ligands use their molecule name, except H2O (aqua), NH3 (ammine), CO (carbonyl).

• Anionic ligands change their ending: -ide → -o, -ate → -ato, -ite → -ito.

• For complex cations, use the metal name followed by the oxidation state in Roman numerals.

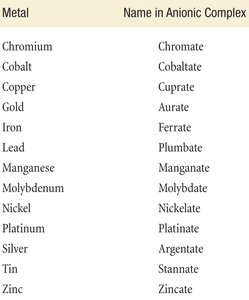

• For complex anions, add -ate to the metal name (sometimes using the Latin root).

Isomerism in Coordination Compounds

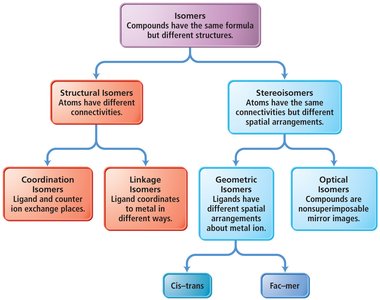

Types of Isomerism

Isomerism in coordination compounds arises from different arrangements of ligands and atoms. The main types are structural isomers (different connectivity) and stereoisomers (different spatial arrangement).

• Coordination Isomers: Ligand and counterion exchange places.

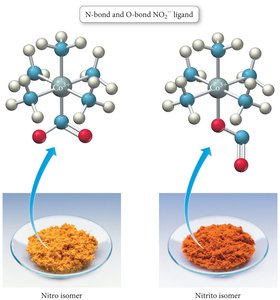

• Linkage Isomers: Ligand coordinates to the metal through different atoms (e.g., NO2- can bind through N or O).

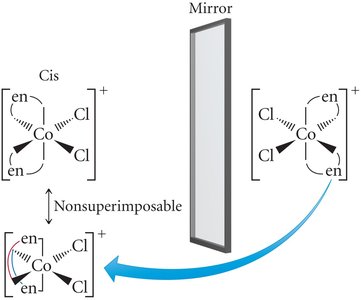

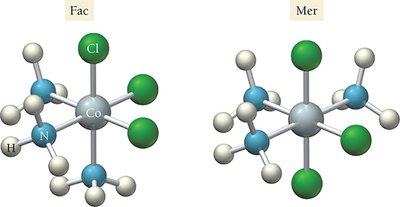

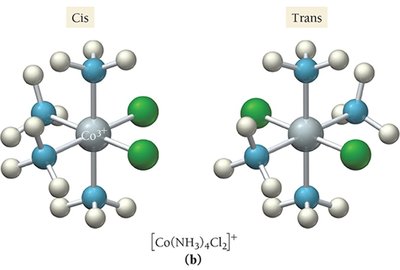

• Geometric Isomers: Ligands differ in spatial arrangement (cis–trans, fac–mer).

• Optical Isomers: Non-superimposable mirror images (chiral complexes).

Bonding in Coordination Compounds

Valence Bond Theory

Valence Bond Theory explains the geometry of coordination compounds based on the hybridization of metal orbitals (e.g., sp3, dsp2, d2sp3).

Crystal Field Theory (CFT)

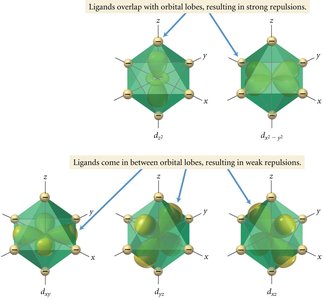

Crystal Field Theory describes the splitting of d orbitals in the presence of ligands, leading to different energy levels. The energy difference is called the crystal field splitting energy (Δ), which determines the color and magnetic properties of the complex.

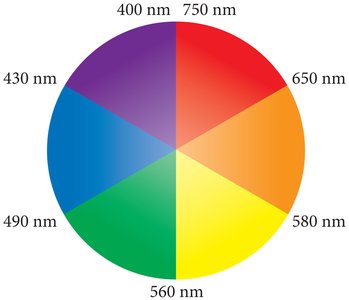

• Key Point: The color of a complex ion is due to electronic transitions between split d orbitals.

• Equation: The energy gap Δ can be calculated using the wavelength of absorbed light: $\Delta = \frac{hc}{\lambda}$

Ligand Field Strength and Color

The magnitude of Δ depends on the nature of the ligands (strong-field or weak-field) and the charge on the metal ion. Strong-field ligands cause a larger Δ, leading to low-spin (diamagnetic) complexes, while weak-field ligands result in high-spin (paramagnetic) complexes.

Magnetic Properties

The number of unpaired electrons in a complex determines its magnetic properties. Low-spin complexes (strong-field ligands) are often diamagnetic, while high-spin complexes (weak-field ligands) are paramagnetic.

Applications of Coordination Compounds

Industrial and Analytical Uses

• Extraction of metals from ores (e.g., silver and gold as cyanide complexes).

• Use of chelating agents (e.g., EDTA for lead poisoning).

• Qualitative analysis for metal ions (e.g., color changes with specific ligands).

• Commercial coloring agents (e.g., iron blue in inks and paints).

Biological Importance

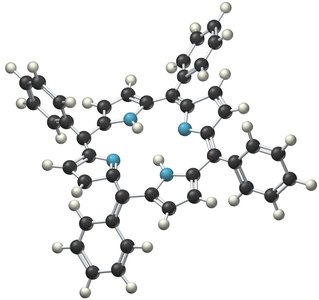

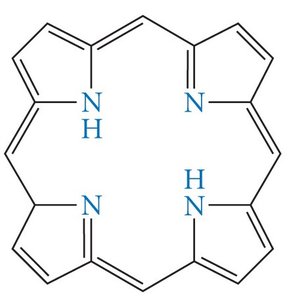

• Porphyrins: Macrocyclic ligands in hemoglobin and chlorophyll.

• Hemoglobin: Iron complex that carries oxygen in blood.

• Chlorophyll: Magnesium complex involved in photosynthesis.

• Carbonic anhydrase: Zinc enzyme that catalyzes CO2 hydration.

Medicinal Chemistry

• Cisplatin: A platinum-based anticancer drug that forms coordination complexes with DNA, inhibiting cancer cell replication.

Transition Metal Colors in Gemstones

The vivid colors of many gemstones are due to the presence of transition metal ions and their coordination environments, which affect d-d electronic transitions and thus the observed color.
