Microscopy, Staining, and Classification: Study Notes for Microbiology Students

Microscopy: How We See the Invisible World

Principles of Microscopy

Microscopy is the technology that enables visualization of objects too small to be seen with the naked eye. It uses light or electrons to magnify specimens, altering the direction of rays to present objects at a greater angle of vision, making them appear larger.

• Magnification: The apparent increase in size of an object, indicated by a number and 'X' (e.g., 100X means 100 times larger).

• Resolution: The ability to distinguish between two closely spaced objects. Higher resolution allows finer details to be seen.

• Contrast: The difference between the object and its background. Contrast can be improved by using dyes or manipulating light.

Limits of Microscopy

The resolving power of a microscope is inversely proportional to the wavelength of the radiation used. Electron microscopes, using shorter wavelengths, achieve much higher resolution than light microscopes.

Types of Microscopes

Light Microscopes

• Bright-Field Microscopes:

  • Simple: Contain a single magnifying lens, similar to a magnifying glass. Used by Leeuwenhoek to observe microorganisms.

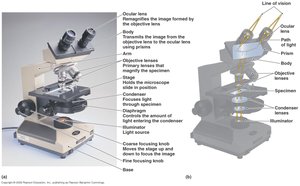

  • Compound: Use a series of lenses for magnification. Light passes through the specimen and into objective lenses. Oil immersion increases resolution by preventing light refraction.

Electron Microscopes

Electron microscopes use beams of electrons instead of light, allowing much greater magnification and resolution. They are essential for viewing viruses, internal cell structures, and molecules.

• Transmission Electron Microscope (TEM): Used to study internal cell structures. Produces 2-D images by passing electrons through thin sections of specimens.

• Scanning Electron Microscope (SEM): Used to study surface architecture. Produces 3-D images by scanning the surface of specimens coated with metal.

Techniques for Identifying Microorganisms

Physical Characteristics

Microorganisms can be identified by their morphology (shape), colony appearance, and presence of structures such as endospores and flagella.

• Morphology: Shapes include coccus, bacillus, spirillum, spirochete, etc.

• Colony Appearance: Different bacteria form colonies with distinct appearances.

• Identifying Structures: Endospores and flagella are key features.

Biochemical Tests

Biochemical tests assess the ability of microorganisms to use or produce specific chemicals, such as carbohydrates, amino acids, or waste products like hydrogen sulfide.

• Fatty Acid Methyl Ester (FAME) Analysis: Identifies bacteria by their unique fatty acid profiles using gas chromatography.

Serological Tests

Serological tests use antibodies to detect specific antigens on microorganisms. Agglutination tests cause clumping if the target antigen is present.

• Antiserum: Solution containing antibodies used to identify pathogens.

• Agglutination: Positive result is indicated by clumping.

Staining Techniques

Principles of Staining

Staining increases contrast, making cells visible against the background. Most stains are either cationic (basic) or anionic (acidic), binding to cellular structures based on charge.

• Basic stains: Methylene blue, crystal violet, safranin, malachite green.

• Acidic stains: Nigrosine, India ink.

Simple Stain

Uses a single positively charged dye to reveal basic cell size, shape, and arrangement. All cells stain similarly due to overall charge.

Differential Stain

Uses two or more dyes to distinguish between different types of cells based on biological differences. Examples include Gram stain, acid-fast stain, and endospore stain.

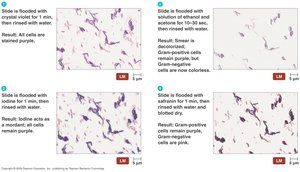

Gram Stain

Distinguishes Gram-positive (purple) from Gram-negative (pink) bacteria based on cell wall structure.

• Gram-positive: Thick peptidoglycan layer.

• Gram-negative: Thin peptidoglycan layer and outer membrane.

Acid-Fast Stain

Identifies bacteria with mycolic acid in their cell walls (e.g., Mycobacterium). Acid-fast cells retain red dye; non-acid-fast cells are blue.

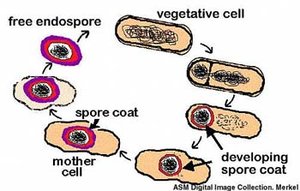

Endospore Stain

Differentiates endospore-forming bacteria (e.g., Bacillus, Clostridium) from non-endospore formers. Endospores stain green; vegetative cells stain pink.

Negative Stain

Uses acidic stains to color the background, leaving cells colorless and visible as clear organisms against a dark field.

Capsule Stain

Combines negative and simple staining to visualize capsules as clear halos around cells.

Flagella Stain

Special stains bind to and thicken flagella, making them visible under the microscope.

Summary of Differential Stains

Specimen Preparation for Light Microscopy

Wet Mount

A drop of medium containing organisms is placed on a slide. Carboxymethylcellulose can be added to slow movement.

Smears and Heat Fixation

Microorganisms are spread on a slide, air-dried, and heat-fixed to kill and adhere them, making them more receptive to stains.

Additional info: Heat fixation preserves cell structure and prevents degradation, allowing for detailed microscopic examination.
