Ethers, Epoxides, and Thioethers: Structure, Properties, and Reactions

Ethers, Epoxides, and Thioethers

Introduction

This chapter explores the structure, nomenclature, physical properties, synthesis, and reactions of ethers, epoxides, and thioethers. These compounds are essential in organic chemistry due to their unique reactivity and widespread use as solvents and intermediates.

Structure and Classification of Ethers

General Structure of Ethers

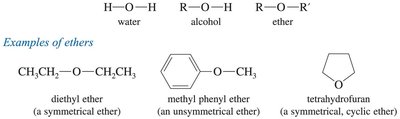

Ethers have the general formula R—O—R', where R and R' can be alkyl or aryl groups. Ethers can be classified as symmetrical (R = R') or unsymmetrical (R ≠ R').

• Symmetrical ethers: Both groups attached to oxygen are the same (e.g., diethyl ether).

• Unsymmetrical ethers: The groups are different (e.g., methyl phenyl ether).

• Cyclic ethers: The oxygen atom is part of a ring (e.g., tetrahydrofuran).

Structure and Polarity

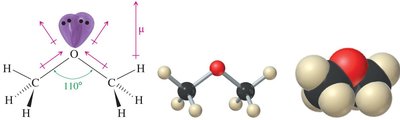

The oxygen atom in ethers is sp3 hybridized, resulting in a bent molecular geometry with a C—O—C bond angle of approximately 110°. The C—O bonds are polar due to the electronegativity difference between carbon and oxygen.

Physical Properties of Ethers

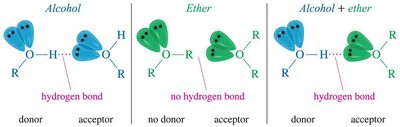

Boiling Points and Hydrogen Bonding

Ethers have lower boiling points than alcohols of similar molecular weight because they cannot hydrogen bond with themselves. However, they can act as hydrogen bond acceptors with water and alcohols.

• Alcohols: Can hydrogen bond with themselves (higher boiling points).

• Ethers: Cannot hydrogen bond with themselves, but can accept hydrogen bonds from water/alcohols.

Comparison of Physical Properties

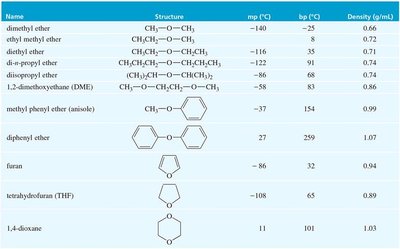

The table below compares the melting points, boiling points, and densities of common ethers:

Name	Structure	mp (°C)	bp (°C)	Density (g/mL)
Dimethyl ether	CH3OCH3	-140	-25	0.66
Diethyl ether	CH3CH2OCH2CH3	-116	35	0.71
Tetrahydrofuran (THF)		-108	65	0.89
1,4-Dioxane		11	101	1.03

Ethers as Solvents

Ethers are widely used as solvents because they can dissolve both polar and nonpolar substances and are generally unreactive toward strong bases. Their ability to solvate cations makes them useful in many reactions.

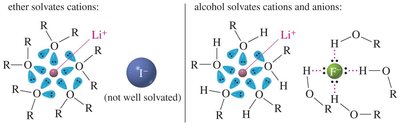

Solvation of Ions

Ethers solvate cations (e.g., Li+) effectively due to their lone pairs, but do not solvate anions well because they cannot donate hydrogen bonds. Alcohols, in contrast, solvate both cations and anions.

Chemical Reactivity and Complexation

Grignard Reagents and Ether Complexes

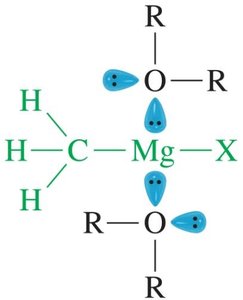

Ethers stabilize Grignard reagents (RMgX) by coordinating to the magnesium atom, keeping the reagent in solution. Ethers also stabilize borane (BH3) through their nonbonding electrons.

Crown Ethers

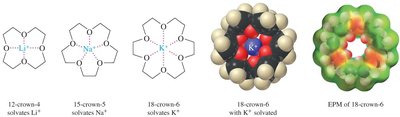

Crown ethers are cyclic polyethers that can complex metal cations in the center of the ring. The size of the ring determines which cation is best solvated. Crown ethers enable polar inorganic salts to dissolve in nonpolar organic solvents.

Nomenclature of Ethers and Epoxides

Common Names of Ethers

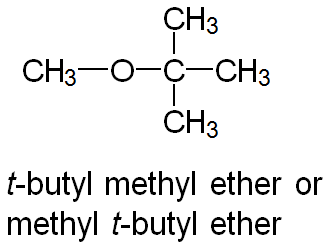

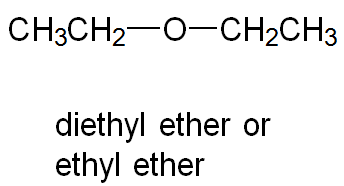

Common names are formed by naming the two alkyl groups attached to oxygen in alphabetical order, followed by "ether." For symmetrical ethers, use "dialkyl ether."

IUPAC Names: Alkoxy Alkanes

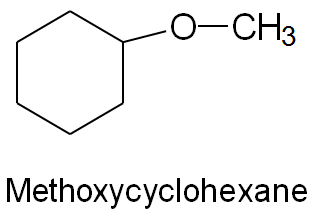

In IUPAC nomenclature, the more complex alkyl group is the parent alkane, and the smaller group with the oxygen is named as an "alkoxy" substituent.

Cyclic Ethers (Heterocycles)

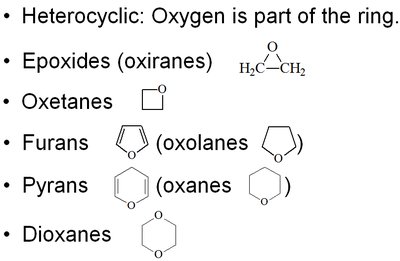

Cyclic ethers, or heterocycles, include epoxides (three-membered rings), oxetanes (four-membered), furans (five-membered), pyrans (six-membered), and dioxanes (six-membered with two oxygens).

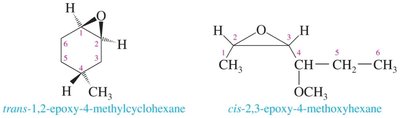

Epoxide Nomenclature

Epoxides can be named by adding "oxide" to the name of the starting alkene or by treating the oxygen as an "epoxy" substituent with locants. The parent name for a three-membered ring is "oxirane." Substituents are named in alphabetical order.

Spectroscopic Properties of Ethers

Infrared (IR) Spectroscopy

The C—O stretch in ethers appears in the fingerprint region around 1000–1200 cm–1. If the IR spectrum shows a C—O stretch but lacks C=O or O—H stretches, the compound is likely an ether.

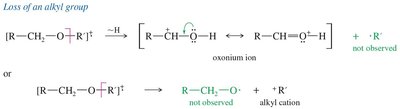

Mass Spectrometry (MS)

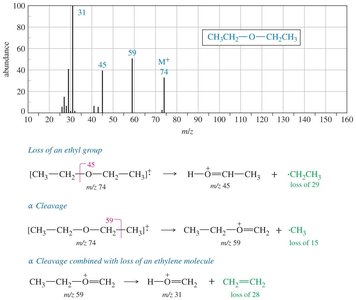

Ethers undergo α-cleavage to form resonance-stabilized oxonium ions. Either alkyl group can be cleaved, and the loss of an alkyl group or ethylene is common in the spectra.

Nuclear Magnetic Resonance (NMR) Spectroscopy

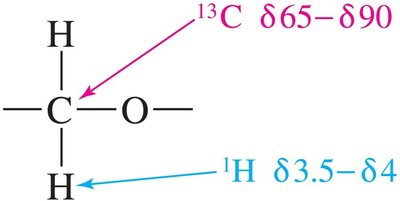

In 13C NMR, the C—O signal appears between δ65 and 90. In 1H NMR, the H—C—O signal appears between δ3.5 and 4.

Synthesis of Ethers

Williamson Ether Synthesis

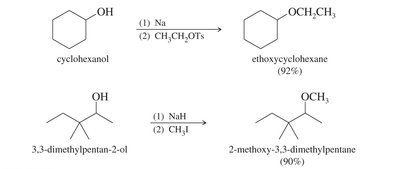

The Williamson ether synthesis involves an SN2 attack of an alkoxide ion on an unhindered primary alkyl halide or tosylate. The alkoxide is typically generated by reacting an alcohol with Na, K, or NaH.

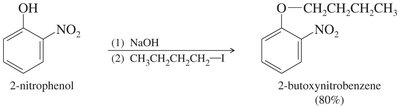

Phenyl Ethers

Phenoxide ions are easily produced due to the acidity of the phenol proton. However, phenyl halides or tosylates cannot be used in the Williamson synthesis.

Limitations of Williamson Synthesis

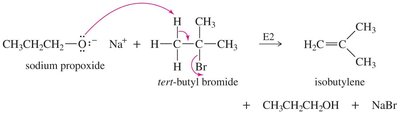

SN2 reactions do not occur on tertiary alkyl halides. Attempting to use a tertiary halide leads to elimination (E2) rather than substitution. A better approach is to use the less hindered alkyl group as the SN2 substrate.

Alkoxymercuration–Demercuration

This method uses mercuric acetate and an alcohol to add an alkoxy group to an alkene, forming an ether. The alcohol attacks the more substituted carbon of the mercurinium ion intermediate.

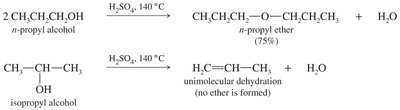

Industrial Synthesis of Ethers

Ethers can be synthesized industrially by the bimolecular condensation of alcohols. This method is not suitable for laboratory synthesis due to competing alkene formation at high temperatures.

Reactions of Ethers

Cleavage by Hydrogen Halides (HBr, HI)

Ethers are generally unreactive but can be cleaved by heating with concentrated HBr or HI. The mechanism involves protonation of the oxygen, followed by SN2 attack by the halide ion, and further reaction of the alcohol product to form another alkyl halide (except with phenols).

Phenyl Ether Cleavage

Phenol cannot react further to become a halide because SN2 reactions do not occur on sp2 carbons.

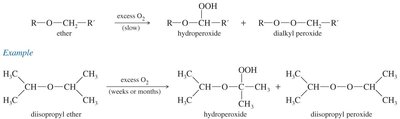

Autoxidation of Ethers

Ethers slowly oxidize in air to form hydroperoxides and dialkyl peroxides, which are highly explosive. Precautions include not distilling to dryness and storing ethers in full bottles with tight caps.

Thioethers (Sulfides) and Silyl Ethers

Thioethers (Sulfides)

Thioethers (R—S—R') are sulfur analogs of ethers. They are named similarly, using "sulfide" in the common name or "alkylthio" in the IUPAC system.

Synthesis and Reactions of Thioethers

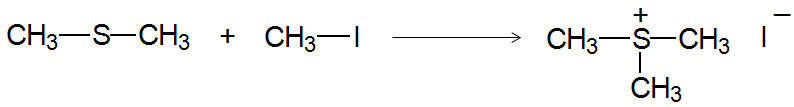

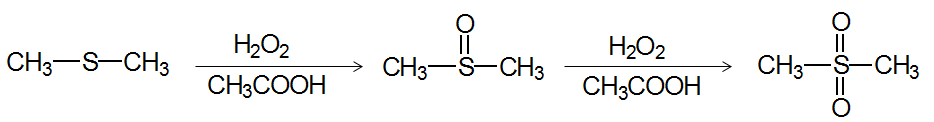

Thioethers are easily synthesized by the Williamson method using a thiolate ion. They are readily oxidized to sulfoxides and sulfones and react with alkyl halides to give sulfonium salts. Thioethers are also used as mild reducing agents.

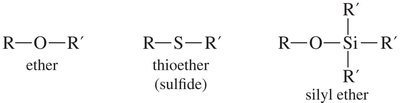

Silyl Ethers

Silyl ethers are used as protecting groups for alcohols. They are resistant to some acids, bases, and oxidizing agents, and can be easily formed and hydrolyzed. Protecting the alcohol as a silyl ether ensures selective reactions, such as Grignard additions to carbonyls.

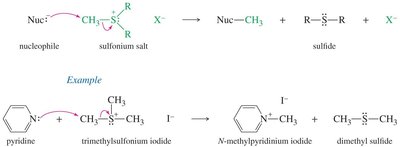

Reactivity of Sulfonium Salts

Sulfonium salts are used as alkylating agents because the leaving group is neutral, making them effective in organic synthesis.

Synthesis and Reactions of Epoxides

Synthesis of Epoxides

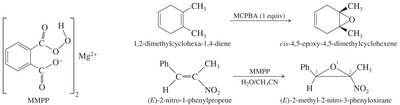

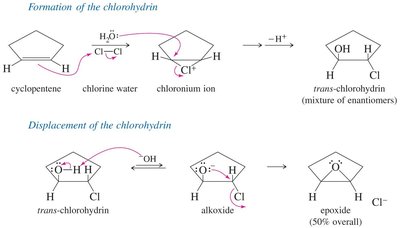

Epoxides are synthesized by the reaction of alkenes with peroxyacids (e.g., MCPBA). The most electron-rich double bond reacts fastest, allowing for selective epoxidation. Epoxides can also be formed by base-induced cyclization of halohydrins.

Ring Opening of Epoxides

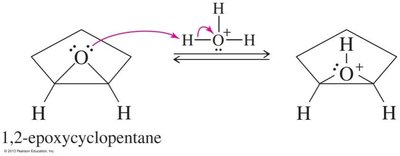

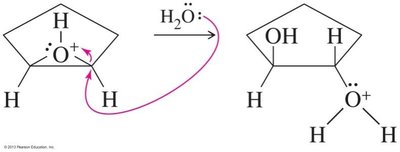

Epoxides are highly strained and readily undergo ring-opening reactions. Acid-catalyzed opening involves protonation of the oxygen, followed by nucleophilic attack (e.g., by water or alcohol), leading to anti diols or alkoxy alcohols. Base-catalyzed opening involves nucleophilic attack by hydroxide or alkoxide, followed by protonation.

Regioselectivity and Stereochemistry

In base-catalyzed opening, the nucleophile attacks the less hindered carbon. In acid-catalyzed opening, the nucleophile attacks the more substituted (more electrophilic) carbon. The products are typically trans (anti) diols or alkoxy alcohols.

Reactions with Grignard and Organolithium Reagents

Strong bases such as Grignard and organolithium reagents open epoxide rings by attacking the less hindered carbon, forming alcohols after protonation.

Applications: Epoxy Resins

Epoxy resins are important polymers formed by the polymerization of epoxides. They are widely used as adhesives and coatings due to their strong mechanical properties and chemical resistance.

Additional info: This summary covers all major aspects of ethers, epoxides, and thioethers, including their structure, nomenclature, physical properties, synthesis, and reactivity, as presented in the provided lecture slides and images. The notes are structured to serve as a comprehensive mini-textbook chapter for college-level organic chemistry students.
