Alkenes and Alkynes: Structure, Nomenclature, Isomerism, and Reactivity

Alkenes and Alkynes: Introduction and Occurrence

Overview of Alkenes and Alkynes

Alkenes and alkynes are unsaturated hydrocarbons containing carbon-carbon double and triple bonds, respectively. These compounds are fundamental in organic chemistry due to their unique reactivity and presence in both natural and synthetic molecules.

• Alkenes: Hydrocarbons with at least one carbon-carbon double bond (C=C). Common in biological molecules and industrial chemicals.

• Alkynes: Hydrocarbons with at least one carbon-carbon triple bond (C≡C). Less common in nature but important in synthetic chemistry.

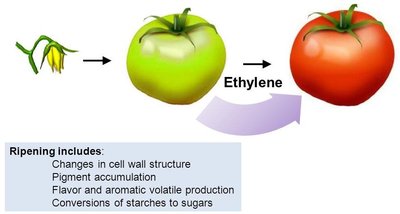

Examples in Nature: β-Carotene, a pigment found in many orange fruits and vegetables, contains multiple double bonds and is a precursor to vitamin A. Ethene (ethylene) acts as a plant hormone, regulating fruit ripening.

Bonding and Structure of Alkenes

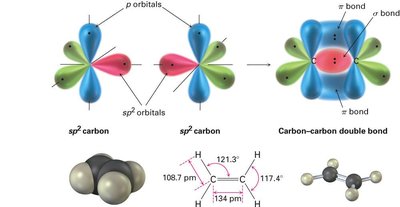

Hybridization and Bonding

Alkene carbons are sp2 hybridized, resulting in a planar structure with bond angles of approximately 120°. The double bond consists of one sigma (σ) bond and one pi (π) bond:

• σ bond: Formed by head-on overlap of sp2 orbitals.

• π bond: Formed by sideways overlap of unhybridized p orbitals, restricting rotation around the double bond.

Nomenclature of Alkenes and Alkynes

Rules for Naming Alkenes

Alkenes are named based on the longest carbon chain containing the double bond, with the suffix "-ene." The position of the double bond is indicated by the lowest possible number. For multiple double bonds, use "-diene," "-triene," etc. Substituents are listed alphabetically, and the double bond takes priority in numbering.

• Examples: 1-hexene (hex-1-ene), 2-methyl-3-hexene (2-methylhex-1-ene), 3-methyl-1-pentene.

• For geometric isomers, use cis/trans or E/Z prefixes as appropriate.

Alkynes are named similarly, with the suffix "-yne" indicating a triple bond.

Isomerism in Alkenes: Cis/Trans and E/Z Designations

Geometric (Cis/Trans) Isomerism

The rigidity of the π bond in alkenes prevents free rotation, leading to geometric isomerism. Simple 1,2-disubstituted alkenes can be classified as cis (substituents on the same side) or trans (substituents on opposite sides).

• Cis-2-butene vs. trans-2-butene

• Cis-2-pentene vs. trans-2-pentene

Interconversion between cis and trans isomers requires breaking the π bond, which typically needs heat or light.

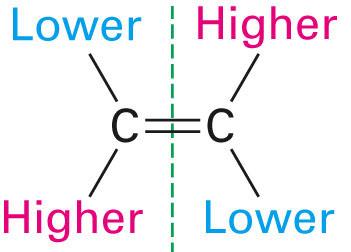

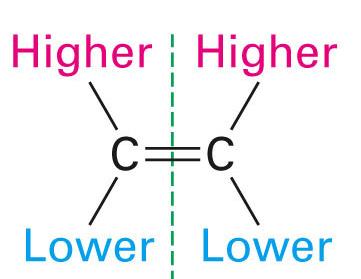

E/Z System for Complex Alkenes

For alkenes with more than two different substituents, the E/Z system is used. Priorities are assigned to substituents on each carbon of the double bond using the Cahn-Ingold-Prelog rules:

• Z (zusammen): High-priority groups on the same side.

• E (entgegen): High-priority groups on opposite sides.

Stability of Alkenes

Factors Affecting Alkene Stability

Alkene stability is influenced by:

• Degree of substitution: More highly substituted alkenes are more stable (tetra > tri > di > mono).

• Stereochemistry: Trans isomers are generally more stable than cis due to reduced steric interactions.

• Conjugation: Conjugated alkenes are more stable than isolated ones.

Example: Combretastatin A-4 (an anticancer drug) is only effective in the cis form.

Physical and Chemical Properties of Alkenes

Physical Properties

• Alkenes are hydrophobic and have poor water solubility due to weak van der Waals interactions with water.

• They are lipophilic, dissolving well in nonpolar solvents.

Chemical Properties

The main reactions of alkenes include:

• Electrophilic addition

• Reduction

• Oxidation

• Free radical addition

• Polymerization

• Photo-isomerization

Electrophilic Addition to Alkenes

Mechanism and Regioselectivity

Alkenes act as nucleophiles due to their π electrons. Electrophilic addition involves:

1. Attack of the electrophile (E+) on the double bond, forming a carbocation intermediate (rate-determining step).

2. Rapid reaction of the carbocation with a nucleophile (Nu-).

The reaction is regiospecific, often following Markovnikov's rule: the electrophile adds to the carbon that forms the most stable carbocation intermediate.

• "In the addition of HX to an alkene, H attaches to the carbon with fewer alkyl substituents, and X attaches to the carbon with more alkyl substituents."

Carbocation Structure and Stability

Structure of Carbocations

Carbocations are planar, with the central carbon being sp2 hybridized and possessing a vacant p orbital perpendicular to the plane.

Stability of Carbocations

Carbocation stability increases with the number of alkyl substituents due to inductive and hyperconjugative effects:

• Methyl < Primary (1°) < Secondary (2°) < Tertiary (3°)

This explains the regioselectivity observed in Markovnikov addition reactions.

Hydration of Alkenes (Addition of Water)

Mechanism of Acid-Catalyzed Hydration

Alkenes react with water in the presence of acid (e.g., H2SO4 or H3PO4) to form alcohols. The reaction proceeds via electrophilic addition, forming a carbocation intermediate and following Markovnikov's rule.

Reduction and Oxidation of Alkenes

Hydrogenation (Reduction)

Alkenes can be reduced to alkanes by catalytic hydrogenation using transition metal catalysts (e.g., Ni, Pt, Pd/C). The reaction occurs on the metal surface, where hydrogen is adsorbed and transferred to the alkene.

Oxidation

Alkenes can be oxidized by molecular oxygen to form peroxides, which can be hazardous and may deactivate drugs containing alkene groups.

Alkynes: Structure, Nomenclature, and Reactivity

Structure and Nomenclature

Alkynes contain a carbon-carbon triple bond and are named similarly to alkenes, with the suffix "-yne." The triple bond is linear, and the carbons are sp hybridized.

Reactivity of Alkynes

• Alkynes undergo addition reactions similar to alkenes but often require more forcing conditions.

• Hydrogenation of alkynes can be controlled using Lindlar's catalyst to stop at the cis-alkene stage.

Acidity and Alkylation of Alkynes

Terminal alkynes are significantly more acidic than alkenes and alkanes (pKa ~25 for alkynes, ~44 for alkenes, ~50 for alkanes). Treatment with a strong base (e.g., NaNH2) generates an acetylide anion, which can undergo alkylation with alkyl halides.

Hydrocarbon	pKa	Relative Acidity
Alkane	~50	Least acidic
Alkene	~44	Less acidic
Alkyne	~25	Most acidic

Example: Alkylation of terminal alkynes allows for the formation of more complex carbon skeletons in organic synthesis.
