Atomic Structure and Chemical Bonding: Foundations for Organic Chemistry

Atomic Structure

Historical Experiments and Models

The understanding of atomic structure has evolved through key experiments and theoretical models. These foundational concepts are essential for grasping the behavior of atoms in organic molecules.

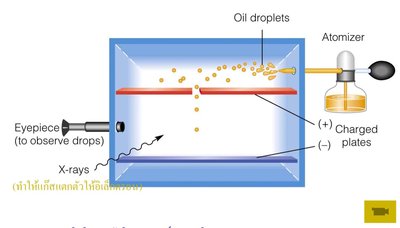

• Millikan Oil Drop Experiment: Determined the charge of the electron by observing the motion of oil droplets in an electric field.

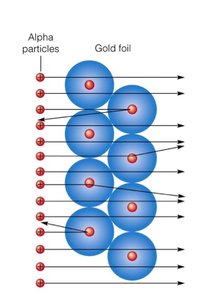

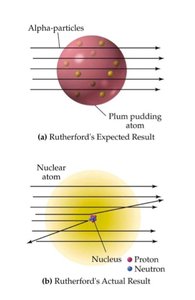

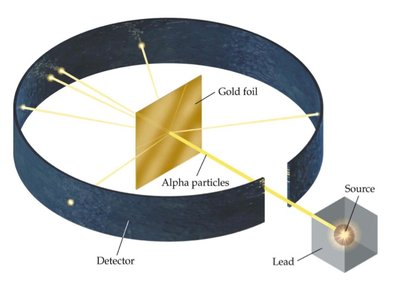

• Rutherford Gold Foil Experiment: Demonstrated that atoms have a small, dense, positively charged nucleus, leading to the nuclear model of the atom.

• Bohr Model: Proposed that electrons orbit the nucleus in quantized energy levels, explaining atomic emission spectra.

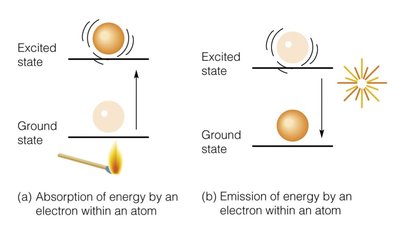

Atomic Spectra and Energy Levels

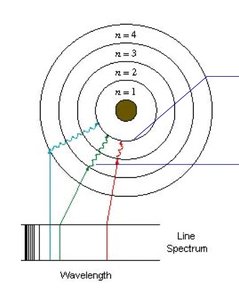

Atoms absorb and emit energy in discrete amounts, leading to line spectra. The Bohr model explains these transitions as electrons moving between quantized orbits.

• Ground State: The lowest energy state of an atom.

• Excited State: A higher energy state achieved when an electron absorbs energy.

• Emission: When an electron returns to a lower energy state, it emits a photon of specific energy (wavelength).

Quantum Mechanical Model

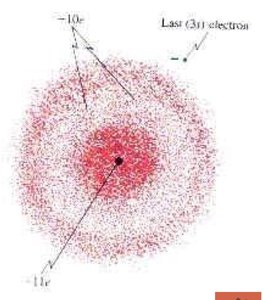

The modern atomic model describes electrons as occupying orbitals, regions of space with a high probability of finding an electron. These are defined by quantum numbers:

• Principal Quantum Number (n): Indicates the main energy level or shell.

• Angular Momentum Quantum Number (l): Defines the subshell (s, p, d, f).

• Magnetic Quantum Number (ml): Specifies the orientation of the orbital.

• Spin Quantum Number (ms): Describes the spin of the electron (+1/2 or -1/2).

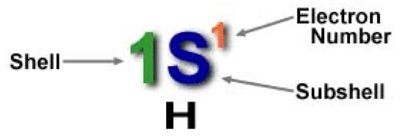

Electron Configuration and the Periodic Table

Electron configuration describes the arrangement of electrons in an atom. The Aufbau principle, Pauli exclusion principle, and Hund's rule govern the filling of orbitals.

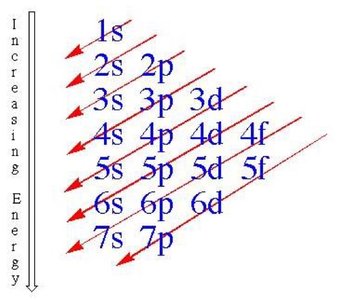

• Aufbau Principle: Electrons fill the lowest energy orbitals first.

• Pauli Exclusion Principle: No two electrons in an atom can have the same set of four quantum numbers.

• Hund's Rule: Electrons occupy degenerate orbitals singly before pairing.

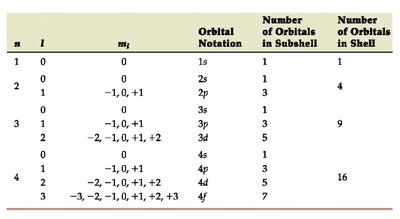

Quantum Numbers and Orbitals Table

The table below summarizes the relationship between quantum numbers, orbital notation, and the number of orbitals in each subshell and shell.

n	l	ml	Orbital Notation	Number of Orbitals in Subshell	Number of Orbitals in Shell
1	0	0	1s	1	1
2	0	0	2s	1	4
2	1	-1, 0, +1	2p	3	4
3	0	0	3s	1	9
3	1	-1, 0, +1	3p	3	9
3	2	-2, -1, 0, +1, +2	3d	5	9
4	0	0	4s	1	16
4	1	-1, 0, +1	4p	3	16
4	2	-2, -1, 0, +1, +2	4d	5	16
4	3	-3, -2, -1, 0, +1, +2, +3	4f	7	16

Chemical Bonding

Types of Chemical Bonds

Chemical bonds are the forces that hold atoms together in compounds. The main types are ionic, covalent, and metallic bonds.

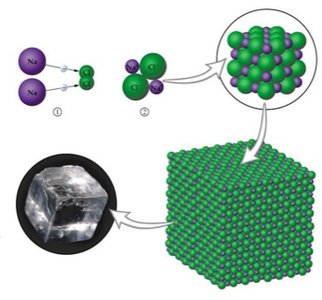

• Ionic Bond: Formed by the transfer of electrons from one atom to another, resulting in oppositely charged ions.

• Covalent Bond: Formed by the sharing of electron pairs between atoms.

• Polar Covalent Bond: Electrons are shared unequally, leading to partial charges on atoms.

Bond Polarity and Dipole Moments

Bond polarity arises from differences in electronegativity between bonded atoms. A dipole moment is a measure of the separation of positive and negative charges in a molecule.

• Nonpolar Molecule: Symmetrical distribution of charge; no net dipole moment.

• Polar Molecule: Asymmetrical distribution of charge; has a net dipole moment.

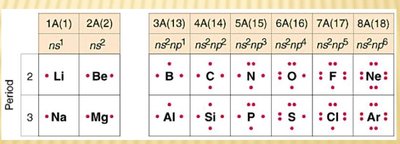

Lewis Structures and Resonance

Lewis structures represent the arrangement of valence electrons in molecules. Resonance structures are alternative Lewis structures for the same molecule, showing delocalization of electrons.

• Octet Rule: Atoms tend to form bonds to achieve eight electrons in their valence shell.

• Resonance: Some molecules cannot be represented by a single Lewis structure; resonance hybrids better describe their electron distribution.

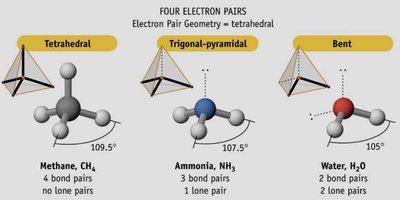

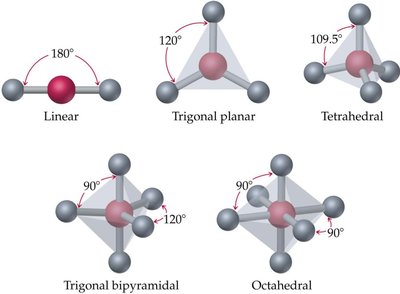

VSEPR Theory and Molecular Geometry

The Valence Shell Electron Pair Repulsion (VSEPR) theory predicts the shapes of molecules based on electron pair repulsion around a central atom.

• Tetrahedral: 109.5° bond angles (e.g., CH4).

• Trigonal Planar: 120° bond angles (e.g., BF3).

• Linear: 180° bond angles (e.g., CO2).

Hybridization and Molecular Orbitals

Hybridization explains the observed shapes of molecules by mixing atomic orbitals to form new hybrid orbitals. Molecular orbital theory describes the combination of atomic orbitals to form bonding and antibonding molecular orbitals.

• sp3 Hybridization: Tetrahedral geometry (e.g., methane).

• sp2 Hybridization: Trigonal planar geometry (e.g., ethene).

• sp Hybridization: Linear geometry (e.g., acetylene).

Periodic Trends Relevant to Bonding

Periodic trends such as atomic radius, ionization energy, and electronegativity influence chemical bonding and molecular structure.

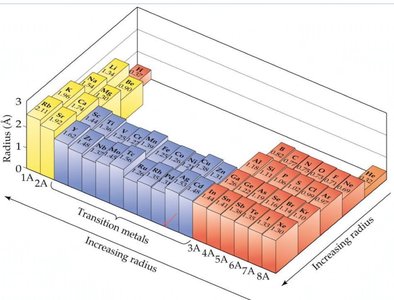

• Atomic Radius: Decreases across a period, increases down a group.

• Ionization Energy: Increases across a period, decreases down a group.

• Electronegativity: Increases across a period, decreases down a group.

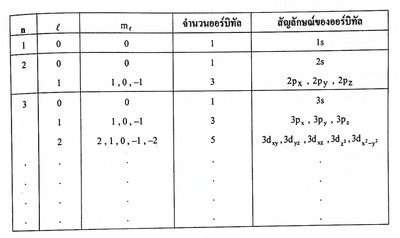

Summary Table: Quantum Numbers and Orbitals

n	l	ml	Number of Orbitals	Orbital Type
1	0	0	1	1s
2	0	0	1	2s

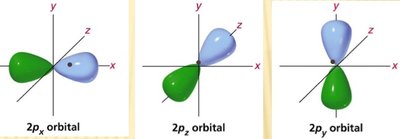

2	1	-1, 0, +1	3	2px, 2py, 2pz
3	0	0	1	3s
3	1	-1, 0, +1	3	3px, 3py, 3pz
3	2	-2, -1, 0, +1, +2	5	3dxy, 3dyz, 3dzx, 3dx2-y2

Conclusion

Understanding atomic structure and chemical bonding is fundamental for studying organic chemistry. These principles explain the behavior of atoms in molecules, the formation of chemical bonds, and the properties of organic compounds.
