Stereochemistry
Absolute and Relative Configuration
Stereochemistry is the study of the three-dimensional arrangement of atoms in molecules and its impact on chemical properties. The configuration of chiral molecules can be described as either absolute or relative:
Relative configuration: The experimentally determined relationship between the configurations of two molecules, even if the absolute arrangement is unknown.
Absolute configuration: The precise spatial arrangement of atoms in a molecule, often determined by X-ray crystallography.
Historically, the D-L system (Fischer-Rosanoff Convention) was used to assign relative configurations to sugars and amino acids based on their similarity to (+)-glyceraldehyde (D) or (–)-glyceraldehyde (L).
With modern techniques, the absolute configuration of glyceraldehyde enantiomers is known: (+) is (R) and (–) is (S).
Physical Properties of Stereoisomers
Stereoisomers are compounds with the same molecular formula and connectivity but different spatial arrangements. They are classified as enantiomers or diastereomers:
Diastereomers: Have different physical properties (melting point, boiling point, solubility) and can be separated by conventional methods such as distillation or recrystallization.
Enantiomers: Differ only in their interaction with other chiral molecules and the direction in which they rotate plane-polarized light. They are difficult to separate.
Resolution of Enantiomers
Pure enantiomers are often isolated from biological sources, but chemical synthesis from achiral reagents yields racemic mixtures. The process of separating enantiomers is called resolution:
One method involves reacting a racemic mixture with a chiral compound (resolving agent) to form diastereomers, which can be separated.

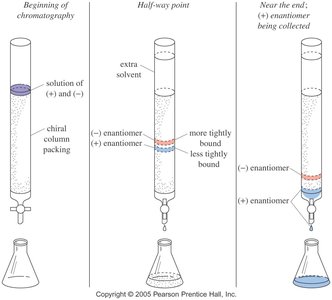

Another method uses chromatography with a chiral stationary phase, where enantiomers bind differently and are separated.
Organic Reaction Mechanisms
Writing Equations for Organic Reactions
Organic reactions are typically represented with a single reaction arrow between starting materials and products. The reagent may be shown on the left or above the arrow, and conditions such as solvent, temperature, or light/heat are indicated above or below the arrow.
Sequential reactions are numbered above the arrow to indicate the order of steps.
Kinds of Organic Reactions
Organic reactions are classified into three main types:
Substitution: An atom or group is replaced by another atom or group. Involves breaking and forming σ bonds at the same carbon atom.
Elimination: Elements are removed from the starting material, typically forming a π bond. Two σ bonds are broken.
Addition: Elements are added to the starting material. A π bond is broken and two σ bonds are formed.
Bond Making and Bond Breaking
Bond cleavage in organic reactions occurs in two ways:
Homolysis (homolytic cleavage): Electrons are divided equally between atoms, generating uncharged intermediates (radicals).
Heterolysis (heterolytic cleavage): Electrons are divided unequally, generating charged intermediates (ions).

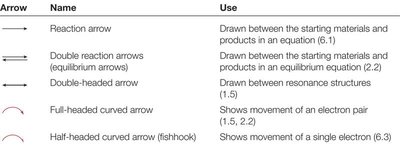

Arrow notation is used to illustrate electron movement:
Half-headed curved arrow (fishhook): Movement of a single electron.
Full-headed curved arrow: Movement of an electron pair.
Halogenation of Alkanes
Halogenation is a substitution reaction where a halogen replaces a hydrogen atom in an alkane. This reaction requires heat or light for initiation and proceeds via a chain reaction mechanism.
Example: Chlorination of methane produces chloromethane and hydrogen chloride.
Stereochemistry: Chiral and Achiral Molecules
Chiral and Achiral Molecules
A molecule is chiral if it is not superimposable on its mirror image, similar to left and right hands. An achiral molecule is superimposable on its mirror image, like a pair of socks.
Chiral molecules have at least one asymmetric carbon (tetrahedral carbon with four different groups).
Achiral molecules often have an internal plane of symmetry.
Identifying Chiral Centers
To determine chirality, examine each tetrahedral carbon atom and the four groups attached. Exclude CH2, CH3, and any sp or sp2 hybridized carbons.
Asymmetric carbons are often marked with an asterisk (*).
With one asymmetric carbon, the molecule is always chiral.
With two or more, the molecule may or may not be chiral.
Internal Plane of Symmetry
An internal plane of symmetry divides a molecule into two identical halves. Molecules with such a plane are achiral, even if they contain asymmetric carbons.
Cis-1,2-dichlorocyclopentane is achiral due to its internal plane of symmetry.
Trans-1,2-dichlorocyclopentane is chiral, lacking a plane of symmetry.
Practice: Drawing Enantiomers
To draw both enantiomers of a chiral compound, use the tetrahedral convention: two bonds in the plane, one on a wedge (in front), and one on a dash (behind). Place the four groups on the stereogenic center and draw the mirror image.
Summary Table: Properties of Stereoisomers
Property | A | B | A + B (1:1) | C |
|---|---|---|---|---|
Melting point (°C) | 171 | 171 | 146 | 206 |
Solubility (g/100 mL H2O) | 139 | 139 | 125 | 20.6 |
[α] | +13 | –13 | 0 | 0 |
R,S designation | R,R | S,S | R,S | – |
d,l designation | d | l | none | d,l |
Key points: The physical properties of enantiomers (A and B) differ from their diastereomer (C). Racemic mixtures (A+B) also differ from either enantiomer or diastereomer. C is a meso compound and is optically inactive.
Key Equations
General substitution:
General elimination:
General addition:
Homolytic cleavage:
Heterolytic cleavage:
Conclusion
Understanding stereochemistry and organic reaction mechanisms is fundamental to organic chemistry. The spatial arrangement of atoms affects molecular properties, biological activity, and the outcome of chemical reactions. Mastery of these concepts is essential for predicting reactivity and designing synthetic pathways.
