Structure and Bonding in Organic Chemistry: Chapter 1 Study Notes

Structure and Bonding

Introduction to Organic Chemistry

Organic chemistry is the study of carbon compounds, which form the basis of life and many synthetic materials. Understanding the structure and bonding of these compounds is fundamental to predicting their properties and reactivity.

• Organic compounds are primarily composed of carbon and hydrogen, often with oxygen, nitrogen, and halogens.

• Carbon's ability to form four covalent bonds leads to a vast array of molecular structures.

Electronic Structure of the Atom

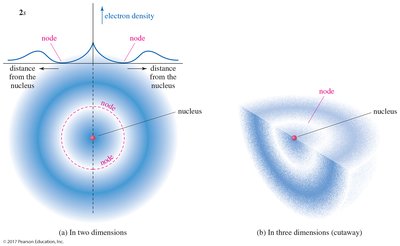

Atoms consist of a dense, positively charged nucleus surrounded by a cloud of electrons. The electron density is highest at the nucleus and decreases with distance.

• Electron density describes the probability of finding an electron at a particular location.

• Electrons occupy atomic orbitals, which are regions of space with specific shapes and energies.

Isotopes

Isotopes are atoms of the same element with different numbers of neutrons. The mass number is the sum of protons and neutrons.

• Example: Carbon-12 and Carbon-14 are isotopes of carbon.

Electronic Configurations of Atoms

Valence electrons are those in the outermost shell and are crucial for chemical bonding. The electronic configuration follows the aufbau principle (fill lowest energy orbitals first) and Hund’s rule (maximize unpaired electrons in degenerate orbitals).

Bonding Types

Ionic Bonding

Atoms may transfer electrons to achieve a noble gas configuration, resulting in ions that attract each other to form ionic bonds.

• Ionic bonds occur between metals and nonmetals.

• Example: NaBr is an ionic compound.

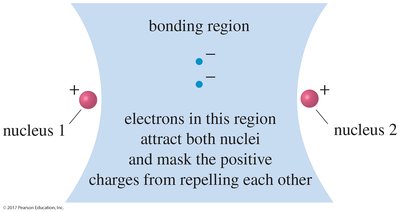

Covalent Bonding

Electrons are shared between atoms to complete the octet. Covalent bonds can be nonpolar (equal sharing) or polar (unequal sharing).

• Nonpolar covalent bond: H2

• Polar covalent bond: C–Cl

Lewis Structures and Bonding Patterns

Lewis Structures

Lewis structures represent atoms, bonds, and lone pairs in molecules. They help visualize electron distribution and predict molecular geometry.

• Example: Methane (CH4), Ammonia (NH3), Water (H2O), Chlorine (Cl2)

Common Bonding Patterns

Atoms have characteristic bonding patterns based on their valence electrons and typical number of bonds.

• Carbon: 4 bonds, 0 lone pairs

• Nitrogen: 3 bonds, 1 lone pair

• Oxygen: 2 bonds, 2 lone pairs

• Hydrogen: 1 bond, 0 lone pairs

• Halogens: 1 bond, 3 lone pairs

Nonbonding Electrons (Lone Pairs)

Lone pairs are valence electrons not involved in bonding. They affect molecular shape and reactivity.

Multiple Bonding

Double bonds involve two pairs of shared electrons; triple bonds involve three pairs. These bonds affect molecular geometry and reactivity.

Bond Polarity and Electronegativity

Electronegativity and Bond Polarity

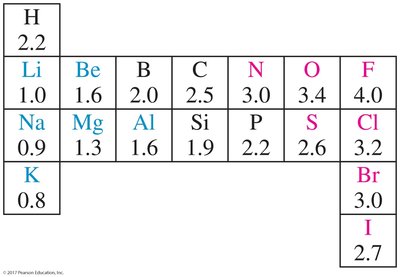

Electronegativity is the ability of an atom to attract electrons in a bond. Differences in electronegativity lead to bond polarity.

• Nonpolar bond: Equal sharing (e.g., C–H)

• Polar bond: Unequal sharing (e.g., C–Cl)

Dipole Moment

The dipole moment (μ) quantifies charge separation in a molecule and is calculated as:

$\mu = \delta \times \text{bond length}$

• Electrostatic potential maps show regions of partial positive and negative charge.

Formal Charges and Resonance

Formal Charges

Formal charge helps track electron distribution in molecules. It is calculated as:

$\text{Formal charge} = [\text{group number}] - [\text{nonbonding electrons}] - \frac{1}{2}[\text{shared electrons}]$

Resonance Forms

Some molecules cannot be represented by a single Lewis structure. Resonance forms are alternative structures differing only in electron placement. The true structure is a hybrid.

• Major contributors have complete octets and minimal charge separation.

• Negative charges should be on the most electronegative atom.

Structural Formulas

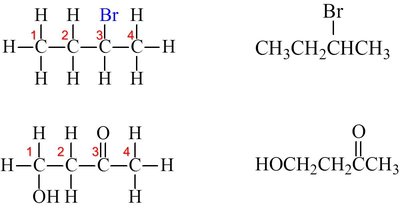

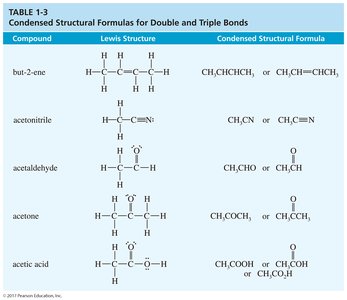

Condensed Structural Formulas

Condensed formulas omit individual bonds and list atoms bonded to the central atom. Parentheses and subscripts indicate identical groups.

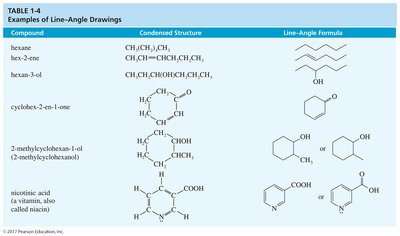

Line-Angle Drawings

Line-angle (skeletal) drawings use lines to represent bonds. Carbons are implied at line ends and intersections; hydrogens on carbon are not shown, but heteroatoms and multiple bonds are explicitly drawn.

Wave Properties and Molecular Orbitals

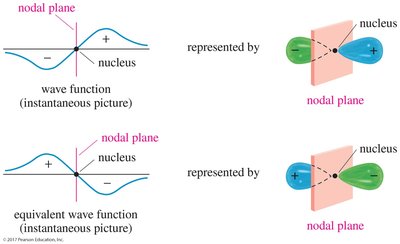

Wave Properties of Electrons

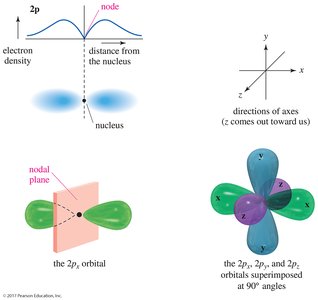

Electrons exhibit wave-like behavior. The wave function (ψ) describes the size, shape, and orientation of orbitals. Nodes are regions where the probability of finding an electron is zero.

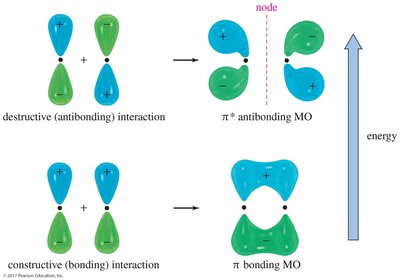

Linear Combination of Atomic Orbitals

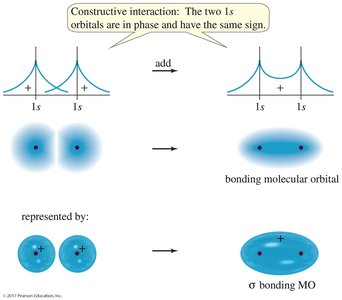

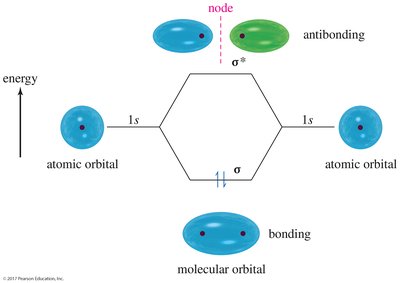

Atomic orbitals combine to form molecular orbitals. In-phase combinations produce bonding orbitals; out-of-phase combinations produce antibonding orbitals.

Hybridization and Molecular Geometry

Hybrid Orbitals

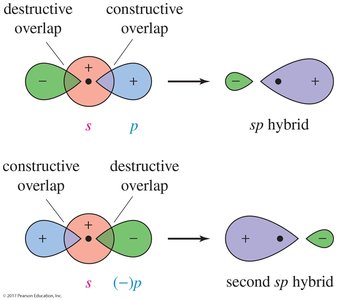

Hybridization explains molecular shapes not predicted by simple s and p orbitals. Hybrid orbitals are formed by combining atomic orbitals on the same atom.

• sp: Linear geometry, 180° bond angle

• sp2: Trigonal planar geometry, 120° bond angle

• sp3: Tetrahedral geometry, 109.5° bond angle

Isomerism

Isomerism

Isomers are molecules with the same molecular formula but different arrangements of atoms.

• Constitutional isomers: Differ in bonding sequence.

• Stereoisomers: Differ in spatial arrangement.

• Geometric isomers (cis/trans): Occur due to restricted rotation around double bonds.

Example: CH3OCH3 and CH3CH2OH are constitutional isomers.

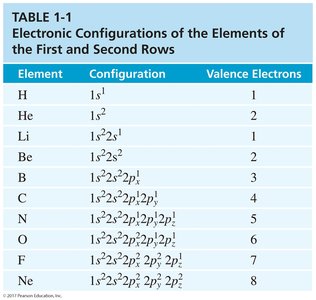

Summary Table: Electronic Configurations

The following table summarizes the electronic configurations and valence electrons for the first and second row elements:

Element	Configuration	Valence Electrons
H	1s1	1
He	1s2	2
Li	1s22s1	1
Be	1s22s2	2
B	1s22s22p1	3
C	1s22s22p2	4
N	1s22s22p3	5
O	1s22s22p4	6
F	1s22s22p5	7
Ne	1s22s22p6	8

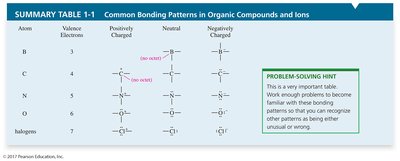

Summary Table: Common Bonding Patterns

The following table summarizes common bonding patterns in organic compounds and ions:

Atom	Valence Electrons	Positively Charged	Neutral	Negatively Charged
B	3
C	4
N	5
O	6
Halogens	7

Additional info: These tables are essential for predicting molecular structure and reactivity in organic chemistry.
