Structure and Preparation of Alkenes: Elimination Reactions

Structure and Preparation of Alkenes: Elimination

Introduction to Alkenes

Alkenes are hydrocarbons characterized by the presence of at least one carbon–carbon double bond. They are also known as olefins. The double bond imparts unique chemical and physical properties to alkenes, distinguishing them from alkanes and alkynes.

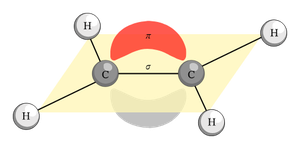

The Sigma and Pi Bond Framework in Alkenes

In alkenes, each carbon atom of the double bond is sp2 hybridized. The sigma (σ) bond is formed by the head-on overlap of sp2 orbitals, while the pi (π) bond results from the side-by-side overlap of unhybridized p orbitals. The presence of the π bond restricts rotation around the double bond, leading to the possibility of geometric (cis/trans) isomerism.

• Sigma bond (σ): Strong, localized between the nuclei.

• Pi bond (π): Weaker, above and below the plane of the atoms, responsible for the reactivity of alkenes.

Bond Lengths and Angles in Alkenes

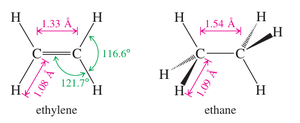

The double bond in alkenes results in shorter bond lengths and larger bond angles compared to alkanes. For example, the C=C bond in ethylene is 1.33 Å, while the C–C bond in ethane is 1.54 Å. The bond angles in ethylene are approximately 121.7°, reflecting the trigonal planar geometry of sp2 hybridization.

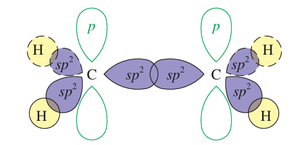

Hybridization and Molecular Orbitals

Each carbon in an alkene uses three sp2 hybrid orbitals to form sigma bonds with two hydrogens and one carbon. The remaining unhybridized p orbital on each carbon overlaps to form the π bond.

Restriction of Rotation and Geometric Isomerism

The π bond in alkenes prevents free rotation about the double bond axis. Twisting the molecule would break the π bond, leading to the existence of cis and trans isomers (geometric isomers) when each carbon of the double bond has two different substituents.

Structure and Bonding in Alkenes

Alkene carbons are sp2 hybridized, resulting in a planar structure. The π bond is more reactive than the σ bond and is the site of most alkene reactions.

Bond Dissociation Enthalpies

Bond dissociation enthalpy is the energy required to break a bond homolytically. The C=C bond in ethylene is stronger than a single C–C bond but not twice as strong, reflecting the relative weakness of the π bond compared to the σ bond.

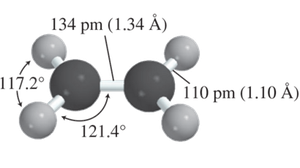

Geometric Parameters of Alkenes

Alkenes exhibit characteristic bond lengths and angles due to sp2 hybridization. The geometry is planar, and the bond angles are close to 120°.

Elements of Unsaturation in Hydrocarbons

Definition and Calculation

Alkenes are unsaturated hydrocarbons because they contain fewer hydrogen atoms than the corresponding alkanes. Each double bond or ring reduces the number of hydrogens by two, representing one element of unsaturation. The general formula for an alkane is CnH2n+2. For each element of unsaturation, subtract two hydrogens from this formula.

Isomerism and Elements of Unsaturation

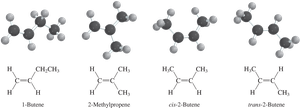

For a given molecular formula, the number of elements of unsaturation can be calculated as half the number of hydrogens missing compared to the saturated alkane. For example, C4H8 has one element of unsaturation and five constitutional isomers.

Elements of Unsaturation with Heteroatoms

• Halogens: Count as hydrogen atoms.

• Oxygen: Ignore in the calculation.

• Nitrogen: Count as half a carbon atom.

Alkene Nomenclature

IUPAC Naming Rules

Alkenes are named by replacing the –ane ending of the corresponding alkane with –ene. The parent chain is the longest continuous chain containing the double bond, and it is numbered to give the double bond the lowest possible numbers. Double bonds take precedence over alkyl and halogen substituents in numbering, but hydroxyl groups outrank double bonds.

• Vinyl, allyl, and isopropenyl are common names accepted in IUPAC nomenclature.

Isomerism in Alkenes

Constitutional and Geometric Isomerism

Alkenes can exhibit both constitutional isomerism (different connectivity) and geometric (cis/trans) isomerism due to restricted rotation about the double bond. Not all alkenes show cis/trans isomerism; it is only possible when each carbon of the double bond has two different substituents.

E and Z Notational System

The E/Z system is used when cis/trans notation is ambiguous. The Cahn-Ingold-Prelog sequence rules assign priorities to substituents on each carbon of the double bond. If the highest priority groups are on the same side, the isomer is Z (zusammen, together); if on opposite sides, it is E (entgegen, opposite).

Physical Properties of Alkenes

General Properties

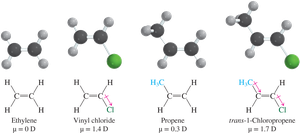

Alkenes are similar to alkanes in many physical properties. Lower alkenes (up to C4H8) are gases at room temperature. The presence of the double bond can affect the dipole moment, boiling point, and solubility.

Relative Stabilities of Alkenes

Factors Affecting Stability

• Degree of substitution: More substituted alkenes are more stable.

• Van der Waals strain: Cis isomers are less stable due to steric strain.

• Chain branching: Branched alkenes are more stable than unbranched isomers.

Heat of hydrogenation and heat of combustion are used to compare alkene stabilities. Lower heat of hydrogenation indicates greater stability.

Elimination Reactions: Preparation of Alkenes

General Mechanism

Elimination reactions decrease the number of σ-bonds and often form new π-bonds. The most common elimination reactions for alkene synthesis are E1 and E2 mechanisms.

E1 and E2 Mechanisms

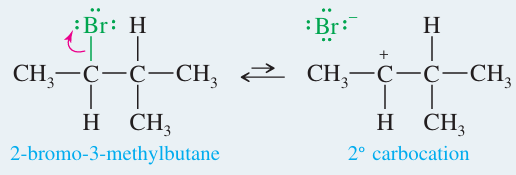

E1 Mechanism (Unimolecular Elimination)

• Two-step process: formation of a carbocation intermediate, followed by loss of a proton.

• First-order kinetics: rate depends only on the substrate.

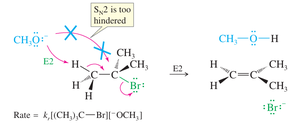

E2 Mechanism (Bimolecular Elimination)

• One-step, concerted process: base abstracts a proton as the leaving group departs.

• Second-order kinetics: rate depends on both substrate and base.

Dehydrohalogenation of Alkyl Halides

Dehydrohalogenation is a β-elimination reaction where a hydrogen and a halogen are removed from adjacent carbons, forming an alkene. A strong base (e.g., sodium ethoxide) is typically used.

Regioselectivity: The Zaitsev Rule

Elimination reactions are often regioselective. According to Zaitsev's Rule, the most substituted alkene (Zaitsev product) is usually the major product.

Competition with Substitution (SN1 and SN2)

E1 reactions often compete with SN1 reactions, especially in polar solvents. E2 reactions are favored with strong bases and hindered substrates, minimizing substitution.

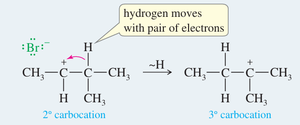

Carbocation Rearrangements in E1 Reactions

Carbocation intermediates can rearrange to form more stable carbocations via hydride or alkyl shifts, affecting the final alkene product distribution.

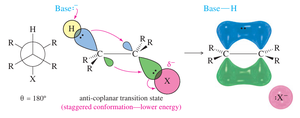

E2 Reaction: Stereochemistry and Substrate Effects

The E2 reaction is stereospecific, typically proceeding via an anti-coplanar transition state (staggered conformation), which is lower in energy than the syn-coplanar (eclipsed) arrangement. Tertiary halides are the best E2 substrates, and bulky bases favor elimination over substitution.

Hofmann vs. Zaitsev Products

Bulky bases can lead to the formation of the less substituted alkene (Hofmann product) due to steric hindrance, while smaller bases favor the Zaitsev product.

Stereochemistry of E2 Mechanism

Anti-coplanar eliminations are more common and energetically favored. The E2 reaction is stereospecific, and different stereoisomers of the starting material yield different alkene stereoisomers.

Comparison of E1 and E2 Mechanisms

• E1: Favored by weak bases, polar solvents, and more stable carbocations; often accompanied by rearrangements and substitution.

• E2: Favored by strong bases, hindered substrates, and anti-coplanar geometry; more useful for synthesis due to fewer side reactions.

Summary Table: E1 vs. E2 Mechanisms

Feature	E1	E2
Steps	Two (carbocation intermediate)	One (concerted)
Kinetics	First-order (substrate only)	Second-order (substrate and base)
Base Strength	Weak base	Strong base
Substrate	3° > 2° > 1°	3° > 2° > 1° (but 1° less common)
Rearrangements	Possible	Not possible
Stereochemistry	Not stereospecific	Stereospecific (anti-coplanar)

Additional info: This summary table is inferred from standard organic chemistry textbooks and the provided content.
