Patterns of Evolution

Divergent Evolution

Divergent evolution occurs when two or more species originate from a common ancestor and accumulate differences, leading to the formation of new species. This process can result from either allopatric (geographic separation) or sympatric (within the same area) speciation.

Key Point 1: Divergent evolution increases biodiversity by producing new species adapted to different environments.
Key Point 2: It is often identified by homologous structures—traits inherited from a common ancestor but adapted for different functions.
Example: The evolution of zebras, donkeys, and horses from a common ancestor demonstrates divergent evolution.

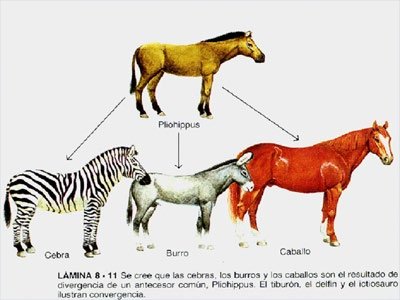

Diagram showing divergence of zebra, donkey, and horse from a common ancestor

Convergent Evolution

Convergent evolution describes the process by which unrelated species independently evolve similar traits as they adapt to similar environments or ecological niches. These similarities are called analogous structures.

Key Point 1: Convergent evolution results in analogous traits, which are similar in function but not inherited from a common ancestor.
Key Point 2: This pattern is common in species that occupy similar habitats but are not closely related.
Example: The wings of birds, bats, and insects are analogous structures that evolved independently for flight.

Flying squirrel as an example of convergent evolution

Parallel Evolution

Parallel evolution occurs when two related species evolve similar traits independently after their divergence from a common ancestor. This typically happens when both species face similar environmental pressures.

Key Point 1: Parallel evolution involves closely related species or lineages developing similar adaptations.
Key Point 2: It is distinguished from convergent evolution by the closer evolutionary relationship of the species involved.
Example: Placental and marsupial mammals have evolved similar forms and ecological roles in different continents.

Marsupial mammal with offspring Placental mammal with offspring

Coevolution

Coevolution describes the reciprocal evolutionary changes that occur between pairs or groups of species in response to interactions with each other. This process often leads to adaptations that are closely matched between the interacting species.

Key Point 1: Coevolution is common in predator-prey, host-parasite, and mutualistic relationships.
Key Point 2: Adaptations in one species drive evolutionary changes in the other.
Example: The evolutionary arms race between owls and their prey, such as mice, is an example of coevolution.

Owl hunting a mouse as an example of coevolution

Speciation and Mechanisms

Sympatric Speciation

Sympatric speciation is the process by which new species evolve from a single ancestral species while inhabiting the same geographic region. This can occur through mechanisms such as polyploidy, sexual selection, or ecological niche differentiation.

Key Point 1: Sympatric speciation does not require physical separation of populations.
Key Point 2: Mechanisms include polyploidy (especially in plants), habitat differentiation, and sexual selection.
Example: Polyploidy in flowering plants can lead to instant reproductive isolation and speciation.

Flowers showing diploid, tetraploid, and octoploid forms as an example of polyploidy

Phylogeny and Phylogenetic Trees

Phylogeny and Systematics

Phylogeny is the study of the evolutionary relationships among organisms. Phylogenetic trees (cladograms) are graphical representations that depict these relationships based on shared characteristics and genetic data.

Key Point 1: Nodes represent common ancestors; terminal nodes are the current species, and internal nodes are ancestral species.
Key Point 2: Branches indicate evolutionary lineages, and clades are groups of organisms descended from a common ancestor.
Example: Phylogenetic trees can be constructed using morphological or molecular data.

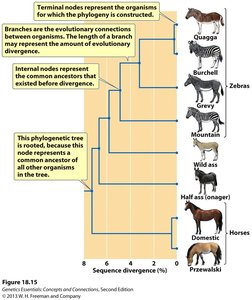

Phylogenetic tree showing relationships among horses and zebras

Methods for Constructing Phylogenetic Trees

Several methods are used to infer phylogenetic relationships:

Distance Approach: Based on overall similarity, often using genetic distance metrics such as the number of amino acid or nucleotide changes.
Parsimony Approach: Seeks the tree with the minimum number of evolutionary changes.
Maximum Likelihood and Bayesian Methods: Use statistical models to estimate the probability of observed data given different tree structures.

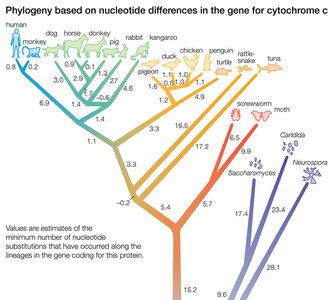

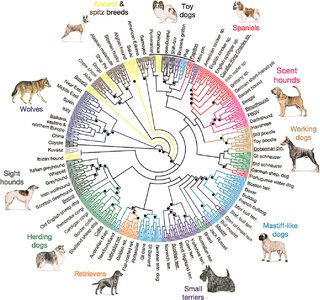

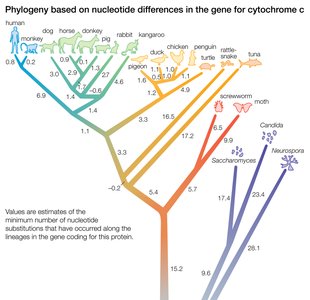

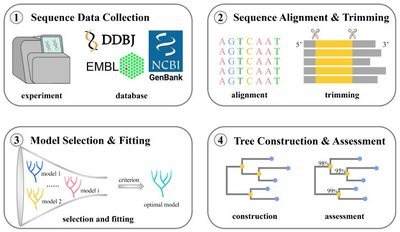

Workflow for constructing phylogenetic trees Circular phylogenetic tree of dog breeds based on SNP markers Phylogenetic tree based on nucleotide differences in cytochrome c gene Diagram showing maximum likelihood method for phylogenetic inference Diagram showing Bayesian method for phylogenetic inference

Homologous Sequence Alignment

Homologous sequence alignment is used to compare DNA, RNA, or protein sequences to identify similarities and differences that inform evolutionary relationships.

Key Point 1: Base substitutions and indels (insertions/deletions) are identified to infer relatedness.
Key Point 2: Closely related species have fewer sequence differences.
Example: Comparing gene sequences among species to construct phylogenetic trees.

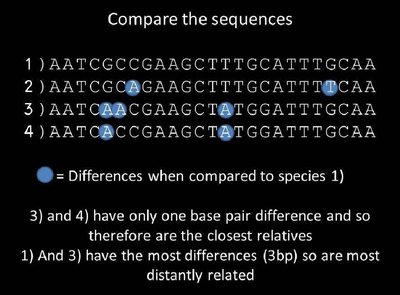

Base sequence comparison for phylogenetic analysis Sequence alignment showing differences among species

Avoiding Misinterpretations in Phylogenetic Trees

It is important to interpret phylogenetic trees correctly. The proximity of branch tips does not necessarily indicate close relatedness; instead, the number of nodes between taxa and their most recent common ancestor should be considered.

Key Point 1: Relatedness is determined by the most recent common ancestor, not by the physical closeness of branch tips.
Key Point 2: Counting nodes between taxa helps clarify evolutionary relationships.

Molecular Evolution and the Molecular Clock

Rates of Molecular Evolution

The rate of molecular evolution is typically measured as the rate of nucleotide substitution per site per year. Synonymous substitutions (do not change amino acid) occur more frequently than nonsynonymous substitutions (change amino acid) due to reduced selective pressure.

Key Point 1: Substitution rates are lower in coding regions and higher in non-coding regions such as pseudogenes.
Key Point 2: Synonymous changes accumulate faster because they are often neutral with respect to selection.
Example: The highest rates of nucleotide substitution are found in sequences with the least effect on protein function.

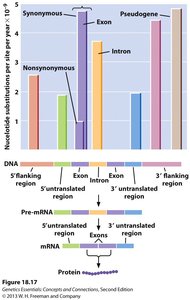

Bar graph showing rates of nucleotide substitution in different gene regions

The Molecular Clock

The molecular clock hypothesis proposes that genetic mutations accumulate at a relatively constant rate over time, allowing scientists to estimate the timing of evolutionary events.

Key Point 1: The molecular clock is calibrated using fossil records or known evolutionary events.
Key Point 2: It is useful for dating divergence times between species.
Example: Comparing DNA sequences between species to estimate when they diverged from a common ancestor.

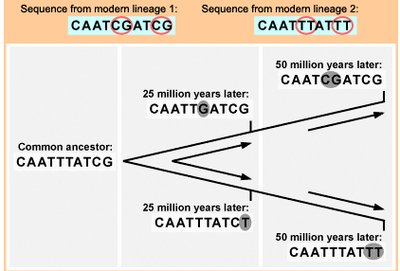

Diagram illustrating the molecular clock concept Diagram showing constant rate of SNP substitution over time

Genome Evolution

Gene Duplication and Multigene Families

Gene duplication is a major mechanism for generating new genetic material. Duplicated genes can diverge and acquire new functions, forming multigene families—sets of similar genes with related but distinct functions.

Key Point 1: One copy of a duplicated gene may become nonfunctional (pseudogene), while another may evolve a new function.
Key Point 2: Multigene families, such as the globin gene family, illustrate the evolutionary process of gene duplication and divergence.
Example: The human globin gene family has evolved through successive gene duplications, resulting in genes with specialized functions for oxygen transport.

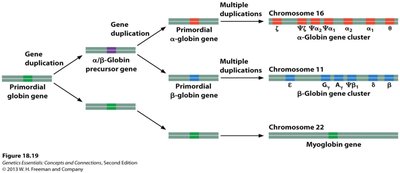

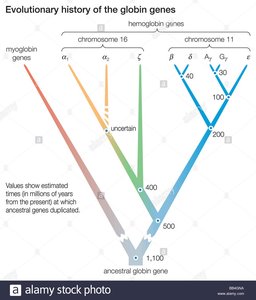

Evolutionary history of the globin gene family Diagram showing gene duplication and divergence in the globin gene family

Whole-Genome Duplication (Polyploidy)

Whole-genome duplication, or polyploidy, is common in plants and results in organisms with multiple sets of chromosomes. This process can lead to rapid speciation and increased genetic diversity.

Key Point 1: Polyploidy is less frequent in animals but plays a significant role in plant evolution.
Key Point 2: Polyploid organisms may have novel traits and increased adaptability.

Flowers showing diploid, tetraploid, and octoploid forms as an example of polyploidy

Horizontal Gene Transfer

Horizontal gene transfer (HGT) is the movement of genetic material between organisms other than by vertical transmission (from parent to offspring). HGT is especially common among bacteria and can occur between bacteria and eukaryotes.

Key Point 1: HGT can obscure traditional phylogenetic relationships by introducing genes from unrelated lineages.
Key Point 2: HGT may be mediated by vectors such as parasites and is controversial in eukaryote-to-eukaryote transfer.
Example: Genes transferred between different species of bacteria can confer antibiotic resistance.

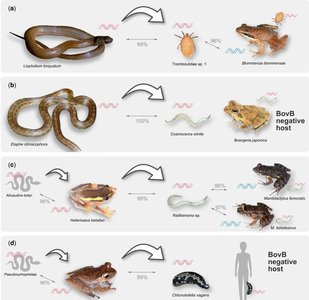

Diagram showing horizontal gene transfer between species

Summary Table: Patterns and Mechanisms of Evolution

Pattern/Mechanism	Description	Example
Divergent Evolution	Species diverge from a common ancestor	Zebra, donkey, and horse
Convergent Evolution	Unrelated species evolve similar traits	Wings in birds and bats
Parallel Evolution	Related species evolve similar traits independently	Placental and marsupial mammals
Coevolution	Species evolve in response to each other	Owl and mouse
Sympatric Speciation	Speciation without geographic separation	Polyploidy in plants
Gene Duplication	New genes arise from duplication events	Globin gene family
Horizontal Gene Transfer	Genes transferred between species	Antibiotic resistance in bacteria

Conclusion

Evolutionary genetics explores the mechanisms and patterns by which genetic change occurs within and among populations. Understanding speciation, phylogenetic relationships, molecular evolution, and genome evolution provides insight into the diversity of life and the processes that drive it.
