Patterns of Evolution and Phylogenetic Analysis in Genetics

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

Patterns of Evolution

Divergent Evolution

Divergent evolution describes the process by which two or more species originate from a common ancestor and accumulate differences, often due to adaptation to different environments or ecological niches. This process can result from either allopatric (geographic separation) or sympatric (within the same area) speciation.

Key Point 1: Divergent evolution leads to increased diversity among related species.
Key Point 2: It is a primary mechanism by which new species arise from a common ancestor.
Example: The evolution of zebras, donkeys, and horses from a common ancestor, Pliohippus.

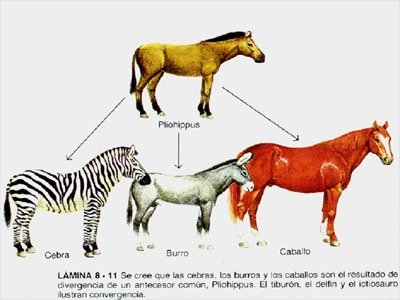

Diagram showing divergence of zebra, donkey, and horse from a common ancestor

Convergent Evolution

Convergent evolution occurs when distantly related species independently evolve similar traits as a result of adapting to similar environments or ecological niches. These similarities are not due to shared ancestry but to similar selective pressures.

Key Point 1: Convergent traits are called analogous structures.
Key Point 2: Convergence demonstrates how similar environmental challenges can shape unrelated organisms in similar ways.
Example: The wings of birds, bats, and insects are analogous structures for flight.

Penguin leaping from water, illustrating convergent evolution of swimming adaptations

Parallel Evolution

Parallel evolution refers to the process where two related species or lineages independently evolve similar traits after diverging from a common ancestor. Unlike convergence, the species share a more recent common ancestor and often similar developmental pathways.

Key Point 1: Parallel evolution often occurs in species that occupy similar habitats or ecological roles.
Key Point 2: It highlights the influence of similar selective pressures on closely related lineages.
Example: Placental and marsupial mammals have evolved similar forms and functions independently in different continents.

Marsupial mammal with offspring, illustrating parallel evolution

Coevolution

Coevolution describes the reciprocal evolutionary changes that occur between pairs or groups of species in response to interactions with each other. This process is common in predator-prey, host-parasite, and mutualistic relationships.

Key Point 1: Coevolution can lead to highly specialized adaptations in both interacting species.
Key Point 2: Examples include the evolutionary arms race between predators and prey or flowering plants and their pollinators.

Owl hunting a mouse, illustrating predator-prey coevolution

Speciation and Mechanisms

Sympatric Speciation

Sympatric speciation is the process by which new species arise from a single ancestral species while inhabiting the same geographic region. This can occur through mechanisms such as polyploidy, sexual selection, or ecological niche differentiation.

Key Point 1: No physical barrier separates the diverging populations.
Key Point 2: Genetic divergence is driven by factors like chromosomal changes or behavioral isolation.
Mechanisms:
1. Polyploidy (especially in plants)
2. Sexual selection
3. Ecological niche differentiation

Phylogeny and Phylogenetic Trees

Phylogeny: Evolutionary Relationships

Phylogeny is the study of the evolutionary relationships among groups of organisms. Phylogenetic trees (cladograms) are graphical representations that depict these relationships based on shared characteristics and genetic data.

Key Point 1: Nodes represent common ancestors; terminal nodes are the current species, and internal nodes are ancestral species.
Key Point 2: Branches represent evolutionary lineages, and clades are groups of organisms descended from a common ancestor.
Comparison: Phylogeny reconstructs evolutionary history, while taxonomy classifies and names organisms.

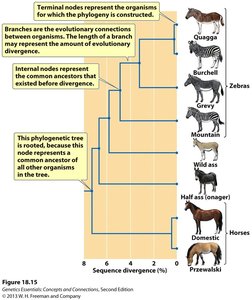

Phylogenetic tree showing relationships among horses and zebras

Methods for Constructing Phylogenetic Trees

Several methods are used to infer phylogenetic relationships:

Distance Approach: Based on overall similarity, often using genetic or phenotypic data. Requires a distance metric, such as the number of amino acid changes.
Parsimony Approach: Seeks the tree with the minimum number of evolutionary changes.
Maximum Likelihood/Bayesian Methods: Use statistical models to estimate the probability of observed data given different tree hypotheses.

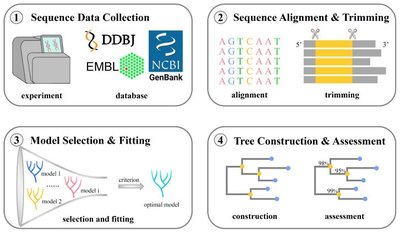

Workflow for constructing a phylogenetic tree

Homologous Sequence Alignment

Homologous sequence alignment is used to compare DNA, RNA, or protein sequences to identify similarities and differences that inform evolutionary relationships. Base substitutions and indels (insertions/deletions) are key features analyzed.

Key Point 1: Sequence alignment helps identify homologous regions and evolutionary changes.
Key Point 2: The number and type of differences can be used to infer relatedness.

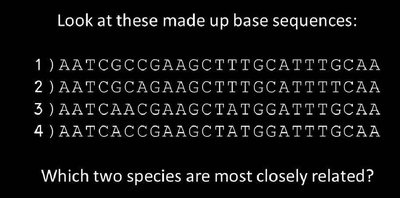

Example of sequence alignment and comparison

Interpreting Phylogenetic Trees

Proper interpretation of phylogenetic trees is essential to avoid misrepresenting evolutionary relationships. The proximity of branch tips does not necessarily indicate close relatedness; instead, the number of nodes and the most recent common ancestor are key.

Key Point 1: Relatedness is determined by the most recent common ancestor, not by the physical closeness of branch tips.
Key Point 2: Counting nodes between taxa can help clarify relationships.

Diagram illustrating correct interpretation of phylogenetic tree nodes

Molecular Evolution and the Molecular Clock

Rates of Molecular Evolution

The rate of molecular evolution is typically measured as the rate of nucleotide substitution per site per year. Synonymous substitutions (do not change amino acid) occur more frequently than nonsynonymous substitutions (change amino acid) due to reduced selective pressure.

Key Point 1: Substitution rates are lower in coding regions and higher in non-coding regions (e.g., pseudogenes).
Key Point 2: Different parts of genes evolve at different rates, reflecting functional constraints.

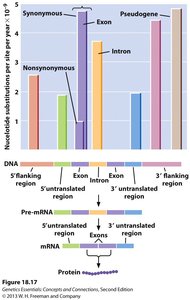

Bar graph showing rates of nucleotide substitution in different gene regions

The Molecular Clock

The molecular clock hypothesis assumes a constant rate of molecular change over time, allowing scientists to estimate the timing of evolutionary events based on genetic divergence.

Key Point 1: The molecular clock is calibrated using fossil records or known divergence times.
Key Point 2: It is a powerful tool for dating evolutionary events and reconstructing phylogenies.

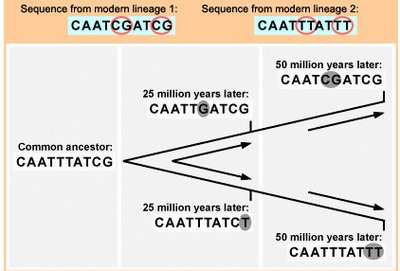

Diagram illustrating the molecular clock concept

Genome Evolution

Gene Duplication and Multigene Families

Gene duplication is a major mechanism for generating new genetic material. Duplicated genes can diverge to acquire new functions, forming multigene families—sets of related genes with similar sequences but distinct functions.

Key Point 1: Duplicated genes may become nonfunctional (pseudogenes) or evolve new functions.
Key Point 2: Multigene families, such as the globin gene family, illustrate the evolutionary potential of gene duplication.
Example: The human globin gene family has evolved through successive gene duplications.

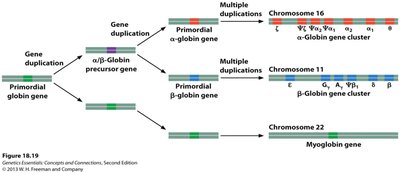

Diagram of the evolutionary history of the globin gene family

Whole-Genome Duplication (Polyploidy)

Whole-genome duplication, or polyploidy, results in organisms with multiple sets of chromosomes. This process is common in plants and can lead to rapid speciation and increased genetic diversity.

Key Point 1: Polyploidy is less frequent in animals but a major evolutionary force in plants.
Key Point 2: Polyploidy can create new species almost instantaneously.

Flowers showing diploid, tetraploid, and octoploid forms

Horizontal Gene Transfer

Horizontal gene transfer (HGT) is the movement of genetic material between organisms other than by vertical transmission (parent to offspring). HGT is especially common among bacteria and can complicate phylogenetic analysis.

Key Point 1: HGT can occur between different species and even between domains of life.
Key Point 2: It can obscure traditional phylogenetic relationships based on vertical inheritance.

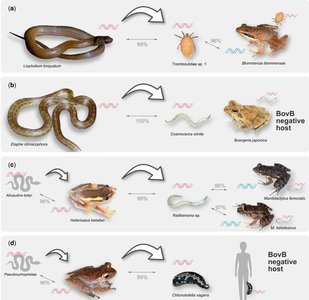

Diagram showing horizontal gene transfer between species

Summary Table: Patterns and Mechanisms of Evolution

Pattern/Mechanism	Definition	Example
Divergent Evolution	Species diverge from a common ancestor	Zebra, donkey, horse
Convergent Evolution	Unrelated species evolve similar traits	Wings in bats and birds
Parallel Evolution	Related species evolve similar traits independently	Placental and marsupial mammals
Coevolution	Species reciprocally affect each other's evolution	Predator-prey adaptations
Gene Duplication	New genes arise by duplication and divergence	Globin gene family
Whole-Genome Duplication	Entire genome duplicated (polyploidy)	Polyploid plants
Horizontal Gene Transfer	Genes transferred between species	Bacterial antibiotic resistance

Key Equations

Rate of Molecular Evolution:

$ \text{Rate} = \frac{\text{Number of substitutions}}{\text{Number of sites} \times \text{Time}} $

Synonymous vs. Nonsynonymous Substitution Rate:

$ K_s = \text{Rate of synonymous substitutions} \\ K_a = \text{Rate of nonsynonymous substitutions} $

Typically, $K_s > K_a$ due to selective constraints on protein function.

Conclusion

Evolutionary genetics encompasses the study of how genetic changes drive the diversity of life through mechanisms such as speciation, gene duplication, and horizontal gene transfer. Phylogenetic analysis, using molecular and morphological data, allows scientists to reconstruct the evolutionary history of organisms and understand the patterns and processes that shape biodiversity.
