Recombinant DNA Technology: Tools, Methods, and Applications

Recombinant DNA Technology

Introduction to Recombinant DNA Technology

Recombinant DNA (rDNA) technology, also known as gene splicing, involves joining DNA molecules from different sources to create new genetic combinations. This technology allows scientists to isolate, study, and manipulate specific DNA sequences, enabling advances in genetics, biotechnology, and medicine.

• Recombinant DNA: DNA molecules formed by laboratory methods of genetic recombination.

• Clones: Identical copies of recombinant DNA molecules, used to study gene structure and function.

Tools of Recombinant DNA Technology

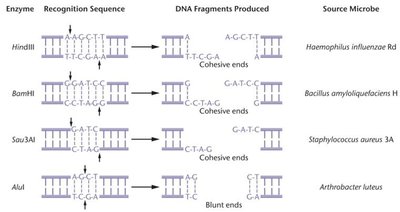

Restriction Enzymes

Restriction enzymes are essential tools for cutting DNA at specific sequences, enabling the creation of recombinant DNA molecules.

• Definition: Enzymes produced by bacteria to defend against bacteriophage infection by degrading foreign DNA.

• Function: Bind to specific recognition sequences (restriction sites) and cleave both DNA strands, producing restriction fragments.

• Types of Ends:

  • Sticky (cohesive) ends: Overhanging single-stranded ends that can anneal with complementary sequences.

  • Blunt ends: Double-stranded ends with no overhangs.

• Palindromic Sequences: Recognition sites are often palindromic, meaning they read the same 5' to 3' on both strands.

DNA Ligase

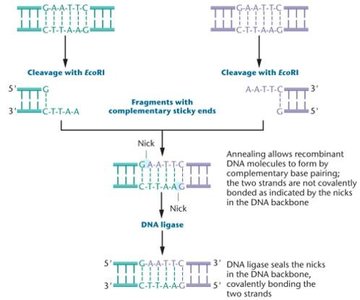

DNA ligase is an enzyme that joins DNA fragments by forming phosphodiester bonds, sealing nicks in the DNA backbone to create stable recombinant molecules.

Cloning Vectors

Properties of Cloning Vectors

Cloning vectors are DNA molecules that can carry foreign DNA into a host cell and replicate there. They are essential for amplifying recombinant DNA.

• Key Features:

  • Ability to replicate independently of the host chromosome

  • Multiple restriction enzyme sites (multiple cloning site, MCS)

  • Selectable marker genes (e.g., antibiotic resistance)

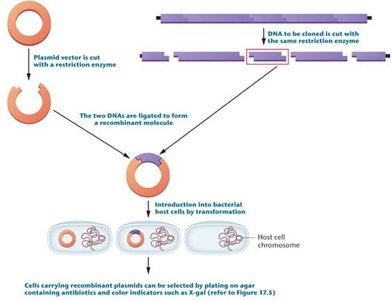

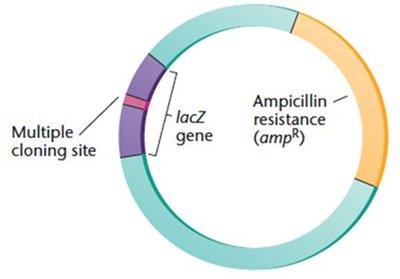

Bacterial Plasmid Vectors

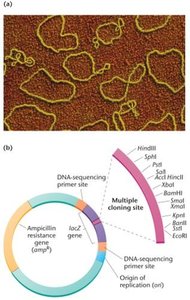

Plasmids are small, circular DNA molecules found in bacteria and are commonly used as vectors in cloning experiments.

• Engineered to contain MCS, selectable markers, and origins of replication.

Transformation

Transformation is the process of introducing recombinant plasmids into bacterial cells.

• Methods:

  • Calcium chloride and heat shock

  • Electroporation (electric pulse)

• After transformation, cells are plated on selective media to identify those containing recombinant DNA.

Blue-White Screening

Blue-white screening is a technique used to distinguish between bacterial colonies containing recombinant and nonrecombinant plasmids.

• Plasmid contains the lacZ gene, which encodes β-galactosidase.

• Plates contain X-gal, a substrate that turns blue when cleaved by β-galactosidase.

• Recombinant plasmids disrupt lacZ, resulting in white colonies; nonrecombinant plasmids yield blue colonies.

Other Types of Cloning Vectors

• Phage vectors: Modified bacteriophages that can carry larger DNA fragments (up to 45 kb).

• Bacterial Artificial Chromosomes (BACs): Large plasmids that can carry 100–300 kb inserts.

• Yeast Artificial Chromosomes (YACs): Vectors with telomeres, centromeres, and origins of replication, capable of carrying up to 1000 kb of DNA.

Expression Vectors

Expression vectors are designed to ensure transcription and translation of the cloned gene, allowing for protein production in host cells. They are available for both prokaryotic and eukaryotic systems.

Genomic and cDNA Libraries

Genomic Libraries

A genomic library is a collection of DNA fragments representing the entire genome of an organism, cloned into vectors for storage and analysis.

• Constructed by cutting genomic DNA with restriction enzymes and ligating fragments into vectors.

• Contains both coding and noncoding sequences.

cDNA Libraries

A cDNA library contains complementary DNA copies synthesized from mRNA, representing only the expressed genes at the time of extraction.

• Useful for studying gene expression and identifying genes involved in specific processes (e.g., cancer).

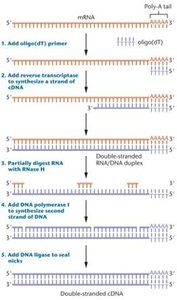

• Constructed by reverse transcription of mRNA, followed by cloning into vectors.

Library Screening

Library screening uses labeled DNA or RNA probes to identify and isolate specific genes of interest from genomic or cDNA libraries.

• Probes must be complementary to the target sequence and labeled for detection.

Polymerase Chain Reaction (PCR)

PCR Principles and Requirements

PCR is a rapid, in vitro method for amplifying specific DNA sequences without the need for cloning in host cells.

• Requirements:

  • Double-stranded target DNA

  • DNA polymerase (often Taq polymerase)

  • Primers (short, single-stranded DNA sequences)

  • Deoxyribonucleoside triphosphates (dNTPs)

  • Mg2+ as a cofactor

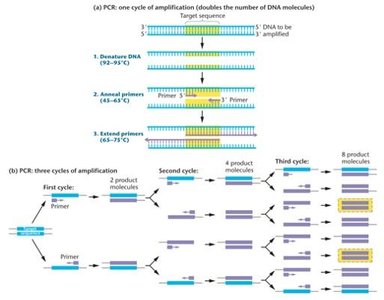

PCR Steps

• Denaturation: Heating separates DNA strands.

• Annealing: Primers bind to complementary sequences.

• Extension: DNA polymerase synthesizes new DNA strands.

Each cycle doubles the amount of target DNA, leading to exponential amplification.

Limitations and Applications of PCR

• Requires prior knowledge of target sequence for primer design.

• Highly sensitive to contamination.

• Cannot efficiently amplify very long DNA segments.

• Applications include genetic testing, forensics, and molecular diagnostics.

RT-PCR and qPCR

• RT-PCR (Reverse Transcription PCR): Used to study gene expression by converting mRNA to cDNA before amplification.

• qPCR (Quantitative Real-Time PCR): Allows quantification of DNA amplification in real time.

DNA Analysis Techniques

Agarose Gel Electrophoresis

Agarose gel electrophoresis separates DNA fragments by size, with smaller fragments migrating farther through the gel. DNA is visualized using stains and UV light.

Southern, Northern, and Western Blotting

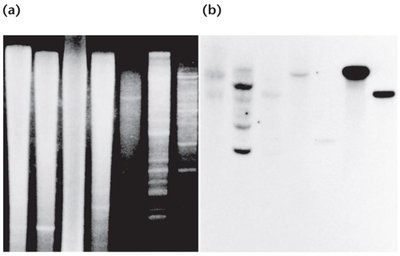

• Southern blot: Detects specific DNA sequences in DNA samples by hybridization with labeled probes after gel electrophoresis and transfer to a membrane.

• Northern blot: Used to study RNA expression patterns.

• Western blot: Used to detect specific proteins.

Fluorescent In Situ Hybridization (FISH)

FISH uses fluorescently labeled probes to detect specific DNA or RNA sequences directly in chromosomes or tissues, useful for karyotyping and developmental studies.

DNA Sequencing

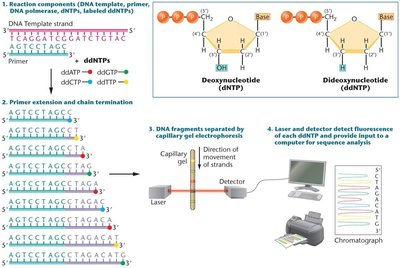

Sanger Sequencing (Dideoxynucleotide Chain-Termination)

Sanger sequencing is the most common method for determining the nucleotide sequence of DNA. It uses dideoxynucleotides (ddNTPs) to terminate DNA synthesis at specific bases, generating fragments that can be separated and analyzed to deduce the sequence.

• Dideoxynucleotides: Lack a 3' hydroxyl group, preventing further extension of the DNA chain.

Genome Editing with CRISPR-Cas

CRISPR-Cas System

CRISPR-Cas is a revolutionary genome editing tool that allows precise removal, addition, or alteration of DNA sequences in living cells. It is based on a bacterial defense mechanism against viruses.

• Cas9 Nuclease: An enzyme that creates double-stranded breaks in DNA at specific sites guided by a single guide RNA (sgRNA).

• PAM Sequence: Cas9 only cuts DNA near a protospacer adjacent motif (PAM), typically 5'-NGG-3'.

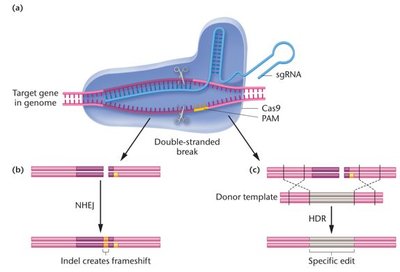

Mechanism of CRISPR-Cas9 Editing

• Cas9 and sgRNA are introduced into cells to target specific genes.

• Double-stranded breaks are repaired by:

  • Nonhomologous end-joining (NHEJ): Can introduce insertions or deletions (indels), disrupting gene function.

  • Homology-directed repair (HDR): Uses a donor template to introduce specific edits.

Limitations of CRISPR-Cas

• Potential for off-target effects due to imperfect sgRNA binding.

• Ongoing improvements include engineering more specific Cas9 variants and optimizing sgRNA design.

Summary Table: Key Tools and Techniques in Recombinant DNA Technology

Tool/Technique	Purpose	Key Feature
Restriction Enzymes	Cut DNA at specific sequences	Produce sticky or blunt ends
DNA Ligase	Join DNA fragments	Forms phosphodiester bonds
Plasmid Vectors	Carry foreign DNA into host	Selectable markers, MCS
PCR	Amplify DNA sequences	Rapid, in vitro
Gel Electrophoresis	Separate DNA by size	Visualization under UV
Southern Blot	Detect DNA sequences	Hybridization with probes
FISH	Visualize DNA/RNA in situ	Fluorescent probes
Sanger Sequencing	Determine DNA sequence	ddNTP chain termination
CRISPR-Cas9	Edit genomes	sgRNA-guided Cas9 nuclease
