Problem 2.3.14

Textbook Question

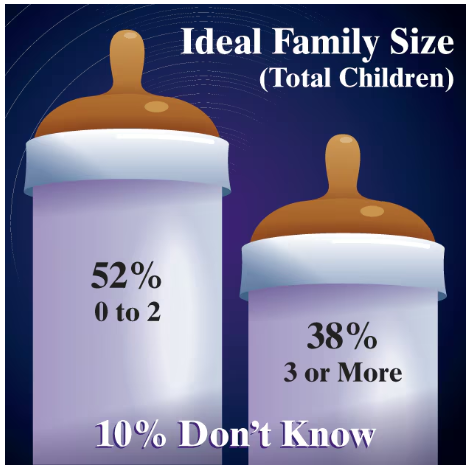

Ideal Family Size The following USA Today–type graphic illustrates the ideal family size (total children) based on a survey of adult Americans.

a. What type of graphic is being displayed?

b. Describe any problems with the graphic.

c. Construct a graphic that is not misleading and makes the data stand out.

Verified step by step guidance

Step 1: Identify the type of graphic displayed. This graphic uses images of baby bottles to represent percentages, which is a form of pictogram or pictorial chart where the size or height of the images corresponds to the data values.

Step 2: Analyze the problems with the graphic. Notice that the baby bottles' heights are used to represent percentages, but the widths are not consistent, which can mislead the viewer because the area (height × width) might exaggerate differences. Also, the 10% 'Don't Know' category is only shown as text and not visually represented, which can cause confusion or underrepresentation of that data.

Step 3: Understand why this is misleading. In pictograms, the area of the images should be proportional to the data values, but here only the height changes while the width remains constant, or the width might also change inconsistently, leading to distorted perception of the data proportions.

Step 4: Plan a better graphic. A bar chart with uniform bar widths and heights proportional to the percentages would be clearer. Each bar should represent one category (0 to 2 children, 3 or more, and Don't Know) with heights corresponding exactly to 52%, 38%, and 10%, respectively.

Step 5: Construct the improved graphic by drawing three bars side by side, each labeled with the category and percentage. Ensure the y-axis is labeled with percentage values to provide context, and use consistent colors or patterns to differentiate categories clearly without distorting the data.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Video duration:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

Types of Graphical Representations

Graphs visually represent data to make patterns and comparisons easier to understand. Common types include bar graphs, pie charts, and histograms. The graphic shown uses baby bottles as bars, making it a pictogram, which is a type of bar graph using images instead of plain bars.

Misleading Graphs and Visual Distortion

Graphs can be misleading if visual elements distort the data, such as using images with varying sizes that do not scale proportionally to the data values. For example, the baby bottles' heights and widths may exaggerate differences, causing misinterpretation of the actual percentages.

Effective Data Visualization Principles

Effective graphs should clearly and accurately represent data without distortion. This includes using consistent scales, avoiding unnecessary embellishments, and choosing simple formats like standard bar graphs or pie charts. Clear labeling and proportional sizing help viewers quickly grasp the data's meaning.
