The Atom (Simplified): Videos & Practice Problems

An atom is the smallest unit of an element, consisting of a nucleus containing protons and neutrons, with electrons orbiting around it. The nucleus is held together by nuclear force, which counteracts the electrostatic force that tries to separate the positively charged protons. For a stable nucleus, the nuclear force must exceed the electrostatic force. Understanding these forces is crucial for grasping atomic stability and the behavior of elements in chemical reactions.

The Atom (Simplified) Concept 1

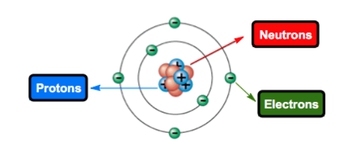

An atom is the smallest unit of an element and serves as the fundamental building block in chemistry. It consists of four major components, with the nucleus being the central part. The nucleus contains two types of subatomic particles: neutrons and protons. Neutrons, which are neutral particles, and protons, which carry a positive charge, are both located within the nucleus. In a simplified representation, the nucleus can be visualized as an orange band, with red balls symbolizing neutrons and blue balls representing protons.

Surrounding the nucleus are electrons, which are negatively charged subatomic particles that orbit around the nucleus. It is important to note that the size of the electron cloud, where the electrons reside, is approximately 1,000,000 times larger than the nucleus itself. This means that while the nucleus is incredibly small, containing only neutrons and protons, the overall structure of the atom is vastly larger, with the nucleus being just a tiny dot in comparison to the entire atom.

The Atom (Simplified) Example 1

In understanding atomic structure, it's essential to recognize the roles and charges of subatomic particles. Protons carry a positive charge of +1, while electrons possess a negative charge of -1. This means that protons and electrons have charges of the same magnitude but opposite signs, confirming the truth of the statement regarding their charges.

However, not all statements about atomic structure hold true. For instance, the assertion that the number of protons must equal the number of neutrons is not universally applicable. While certain isotopes may have equal numbers of protons and neutrons, this is not a requirement for all atoms. In fact, in the example discussed, there were 5 protons and 6 neutrons, illustrating that these quantities can differ.

Another common misconception is the description of the atom as a uniform sphere of mass with electrons embedded within it. This description fails to account for the distinct structure of the atom. The nucleus, which contains protons and neutrons, is significantly smaller in volume compared to the entire atom. The term "uniform" is misleading, as the atom consists of different regions with varying properties. Electrons orbit the nucleus, creating a complex structure rather than a simple uniform sphere.

Furthermore, the volume of the nucleus is a very small fraction of the total volume of the atom, contradicting any notion that it occupies a large portion of the atom's space. Understanding these distinctions is crucial for a comprehensive grasp of atomic theory and the behavior of matter.

The Atom (Simplified) Concept 2

The nucleus, located at the center of an atom, is a minuscule yet crucial component that houses protons and neutrons. Within this nucleus, two primary forces govern the interactions between these particles: the nuclear force and the electrostatic force. The nuclear force is a strong attractive force that binds protons and neutrons together, effectively counteracting the repulsive nature of protons, which are positively charged. In this context, neutrons play a vital role as they possess no charge, acting as a stabilizing "glue" that helps maintain the integrity of the nucleus despite the repulsive forces at play among the protons.

Conversely, the electrostatic force works to pull apart the protons and neutrons due to the repulsion between like charges. This creates a delicate balance within the nucleus. For a nucleus to be stable, the nuclear force must be greater than the electrostatic force. If the nuclear force prevails, the nucleus remains intact; however, if the electrostatic force dominates, it can lead to instability and potential disintegration of the nucleus.

Understanding these forces is essential for grasping the behavior of atomic structures. The interplay between the nuclear force and the electrostatic force not only determines the stability of the nucleus but also influences the overall existence of the atom itself. As we delve deeper into atomic theory and nuclear chemistry in subsequent studies, these foundational concepts will become increasingly significant.

The Atom (Simplified) Example 2

In understanding the structure of the atom, it is essential to recognize the components of the nucleus and the forces at play that determine its stability. The nucleus is primarily composed of protons, which carry a positive charge, and neutrons, which are neutral. This composition leads to the conclusion that the nucleus itself has an overall positive charge due to the presence of protons.

Two critical forces influence the stability of the nucleus: the nuclear force and the electrostatic force. The nuclear force is a strong attractive force that holds protons and neutrons together, while the electrostatic force is a repulsive force that arises between the positively charged protons. For a nucleus to remain intact, the nuclear force must be greater than the electrostatic force. If the nuclear force is less than the electrostatic force, the nucleus cannot maintain its structure and will disintegrate.

When evaluating statements about the nucleus, it is important to identify which are true or false. For instance, the statement that the nucleus has an overall neutral charge is false, as it is positively charged due to the protons. Conversely, the assertion that the nucleus will remain intact when the nuclear force exceeds the electrostatic force is true, reinforcing the concept of nuclear stability.

In summary, the balance between the nuclear force and the electrostatic force is crucial for the stability of the nucleus. Understanding these forces helps clarify why certain statements about atomic structure are accurate while others are not.

Here’s what students ask on this topic:

What are the main parts of an atom?

An atom consists of three main parts: the nucleus, protons, and electrons. The nucleus is the central part of the atom and contains protons and neutrons. Protons are positively charged subatomic particles, while neutrons carry no charge. Electrons are negatively charged subatomic particles that orbit the nucleus. The electron cloud, where electrons are found, is much larger than the nucleus, making the nucleus extremely small in comparison to the entire atom.

What is the role of neutrons in the nucleus?

Neutrons play a crucial role in the nucleus by acting as the 'glue' that holds the nucleus together. They have no charge, which helps to balance the repulsive forces between the positively charged protons. This balance is essential for the stability of the nucleus. Without neutrons, the electrostatic force between protons would cause the nucleus to break apart.

How do nuclear force and electrostatic force affect the stability of the nucleus?

The stability of the nucleus is determined by the balance between nuclear force and electrostatic force. Nuclear force is the attractive force that pulls protons and neutrons together, while electrostatic force is the repulsive force that tries to push protons apart. For a stable nucleus, the nuclear force must be greater than the electrostatic force. If the electrostatic force exceeds the nuclear force, the nucleus can become unstable and break apart.

Why is the nucleus of an atom so small compared to the entire atom?

The nucleus is extremely small compared to the entire atom because it contains only protons and neutrons, which are densely packed together. In contrast, the electron cloud, where electrons orbit the nucleus, occupies a much larger volume. The electron cloud is about 1,000,000 times larger than the nucleus, making the nucleus a tiny fraction of the atom's total volume.

What is the significance of understanding the forces within the nucleus?

Understanding the forces within the nucleus is crucial for grasping atomic stability and the behavior of elements in chemical reactions. The balance between nuclear force and electrostatic force determines whether a nucleus is stable or unstable. This knowledge is essential for studying nuclear chemistry, radioactive decay, and the formation of elements. It also helps in understanding how atoms interact in chemical reactions and the energy changes involved.
