Extraction: Videos & Practice Problems

Extraction is a key laboratory technique used to separate components from a mixture by utilizing their solubility differences in various solvents. This process often involves acid-base reactions, where the pH is selectively altered with strong or weak acids or bases to change the solubility of the compounds in question. For instance, by adding a base to an organic phase containing acetic acid, the acid is deprotonated to form an acetate ion, which is soluble in the aqueous layer due to its polarity. The ion can then be precipitated out as a solid by reintroducing an acid. This method is particularly effective for separating compounds with different acid dissociation constants (pKa), allowing for the isolation of specific acids or bases from a mixture. The technique requires careful pH monitoring using pH strips to ensure complete separation and involves safety measures to release pressure built up during the mixing process. Understanding the principles of acid-base chemistry, including the significance of pKa values, is essential for successful extraction.

Extraction

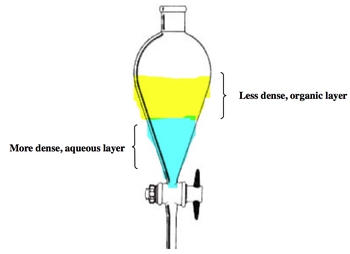

Extraction is a crucial technique in chemistry that involves the separation of a solid from a liquid, often through selective precipitation in a new solvent. A common method for performing extraction is using a separatory funnel, which allows for the separation of two immiscible liquids based on their densities. In this context, the denser liquid, often water, forms the aqueous phase at the bottom, while the less dense organic layer sits above it.

In a typical extraction scenario, you might have two compounds in the organic phase, such as ammonia (NH₃) and acetic acid (CH₃COOH). Acid-base reactions are frequently employed in these extractions, where the pH of the system is adjusted by adding strong or weak acids or bases. The solubility of the compounds in either the aqueous or organic layers is influenced by their pKa values. When an acid or base is added, it can change the ionic state of a compound, thereby affecting its solubility.

For instance, if you want to extract acetic acid from the organic layer, you can add a strong base. This base will deprotonate acetic acid, converting it into the acetate ion (CH₃COO^-), which is polar and thus more soluble in the aqueous layer. Once the acetate ion is in the aqueous layer, it can be collected by draining the layer into a beaker.

To convert the acetate ion back into solid acetic acid, you can introduce an acid to the aqueous solution. This will provide H⁺ ions, converting the acetate back to acetic acid, which is neutral and will precipitate out of the solution. The solid can then be separated from the liquid phase.

To ensure that all acetic acid has been removed from the organic layer, pH strips can be used to test the acidity of the organic phase. If the pH is basic, it indicates that all acetic acid has been neutralized. It is also important to note that mixing acids and bases can generate gas, leading to pressure buildup in the separatory funnel. To safely release this pressure, the funnel should be inverted with the opening pointed upwards, allowing gas to escape while mixing the contents thoroughly.

This method of extraction is not only effective for separating two compounds but can also be adapted for more complex mixtures, allowing for the selective separation of multiple components based on their acid-base properties.

Acid-Base Extraction

Acid-base extraction is a crucial laboratory technique used to separate compounds based on their acidity and basicity. The process begins with the addition of a weak base before a strong base, which allows for the selective reaction of the most acidic component in a mixture. This strategy ensures that only the strongest acid reacts first, preventing the complete neutralization of all acidic compounds and facilitating their separation.

Understanding the pKa values of the compounds involved is essential, as the lower the pKa, the stronger the acid. For instance, in a mixture containing propane (pKa 60), methylamine (pKa 10.64), phenol, and acetic acid (pKa 4.76), acetic acid is the most acidic and will be the first to react with a weak base like sodium bicarbonate (0.25 M). This reaction converts acetic acid into its acetate ion, which is now negatively charged and soluble in the aqueous layer, allowing for its separation from the organic layer.

Once the most acidic component is removed, the remaining compounds can be treated with a stronger base, such as sodium hydroxide, to extract the next most acidic compound, phenol. This reaction generates the phenolate ion, which also becomes soluble in the aqueous layer. To revert these ions back to their neutral forms, acidified water is used to donate protons (H⁺), allowing them to precipitate as solids in the aqueous layer.

After isolating phenol, the remaining compounds include propane and methylamine. Propane, being nonpolar, remains in the organic layer. Methylamine, classified as a weak base, reacts with hydrochloric acid (HCl) to form the methylammonium ion, which is positively charged and thus migrates to the aqueous layer. To neutralize this ion, a base is used to remove a proton, allowing it to precipitate as a solid.

This systematic approach to acid-base extraction highlights the importance of understanding the properties of acids and bases, including their pKa and Ka values. A higher Ka indicates a stronger acid, while a lower pKa signifies the same. Mastery of these concepts is vital for effectively performing acid-base extractions and achieving successful separations in organic chemistry.

Here’s what students ask on this topic:

What is the principle behind acid-base extraction in chemistry?

Acid-base extraction is a technique used to separate compounds based on their solubility in different solvents. The principle involves altering the pH of the solution to change the solubility of the compounds. By adding a strong or weak acid or base, the compounds can be converted into their ionic forms, which are more soluble in the aqueous layer. For example, adding a base to an organic phase containing acetic acid will deprotonate the acid to form an acetate ion, which is soluble in the aqueous layer. This allows for the separation of compounds with different acid dissociation constants (pKa).

How does the pKa value of a compound affect its solubility in acid-base extraction?

The pKa value of a compound indicates its acid strength and affects its solubility during acid-base extraction. Compounds with lower pKa values are stronger acids and will react with weaker bases, becoming ionized and more soluble in the aqueous layer. Conversely, compounds with higher pKa values are weaker acids and require stronger bases to ionize. By selectively varying the pH, compounds can be converted to their ionic forms, increasing their solubility in the aqueous layer and allowing for their separation from the organic layer.

Why is it important to use a weak base before a strong base in acid-base extraction?

Using a weak base before a strong base in acid-base extraction is important because it allows for the selective isolation of the most acidic component first. The weak base will react with the strongest acid present, converting it to its ionic form and making it soluble in the aqueous layer. If a strong base were used initially, it would react with all acidic compounds, making it difficult to separate them individually. This stepwise approach ensures thorough separation of each component based on their acidity.

How can you ensure complete separation of compounds in an acid-base extraction?

To ensure complete separation of compounds in an acid-base extraction, careful pH monitoring is essential. Using pH strips, you can check the pH of the organic layer to confirm that all acidic or basic components have been neutralized. Additionally, thorough mixing and pressure release during the process are crucial. Inverting the separatory funnel and allowing gas to escape ensures proper mixing of the acids and bases. Repeating the extraction process with fresh solvents and adjusting pH as needed will help achieve complete separation.

What safety measures should be taken during acid-base extraction?

During acid-base extraction, several safety measures should be taken to ensure a safe laboratory environment. Always wear appropriate personal protective equipment (PPE), including gloves, goggles, and a lab coat. When mixing acids and bases, be aware of the potential for pressure buildup in the separatory funnel. To release pressure, invert the funnel and open the stopcock periodically. Work in a well-ventilated area or fume hood to avoid inhaling any fumes. Additionally, handle all chemicals with care and follow proper disposal procedures for waste solvents and reagents.
